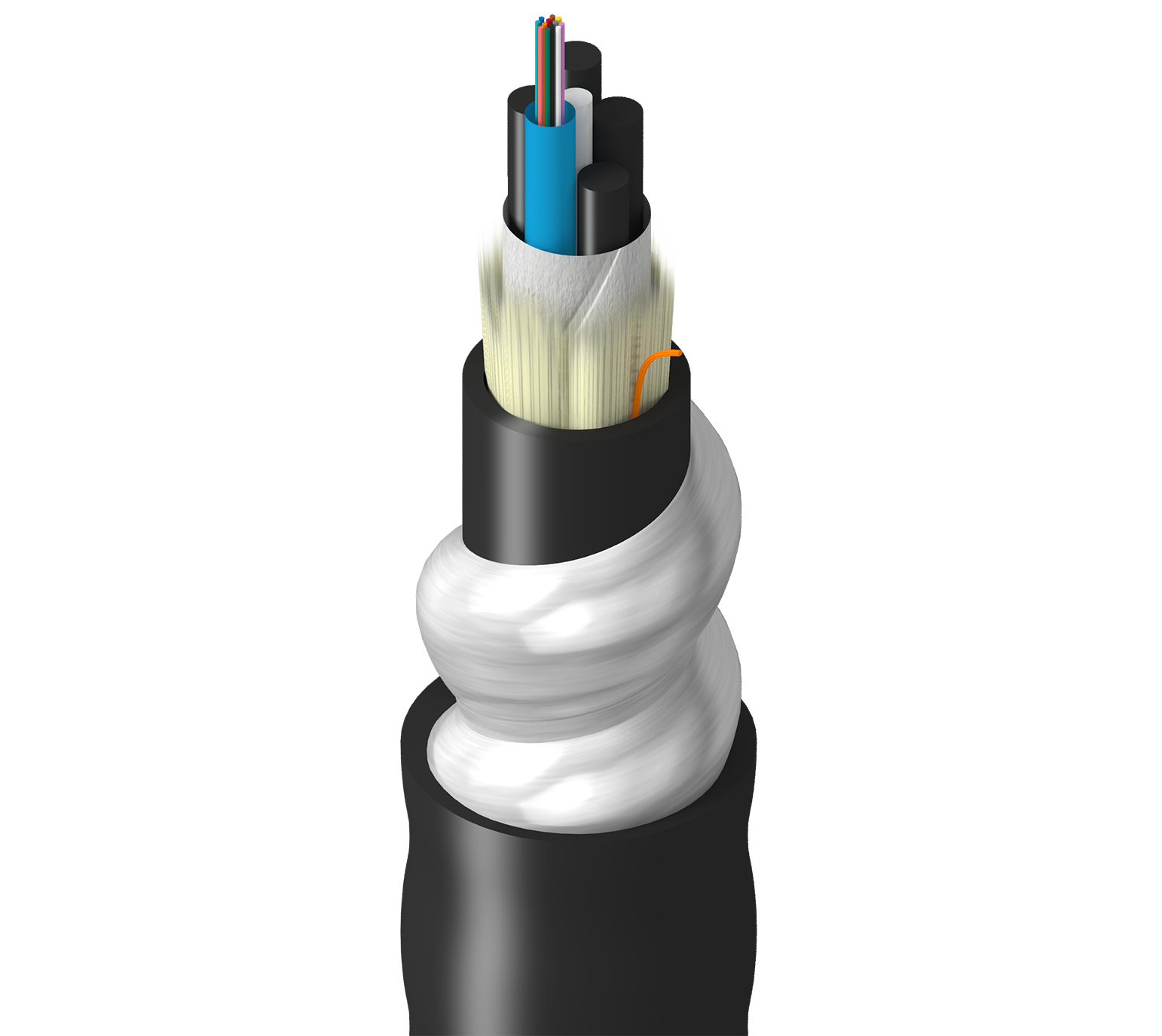

TT-SLG-012-HIN

Product Number: TT-SLG-012-HIN

Transit, In+Outdoor, MLT, OS2, 12f, Gel Tubes 2.8mm, AIA, Dbl Jkt - LSZH, OFCG-ST1

Transit Grade, Indoor/Outdoor, Multi-Loose-Tube, OS2, 12 Fibers, Gel Filled Tubes 2.8mm, Aluminum Interlock Armor, Double Jacket - LSZH, OFCG-ST1

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

TT-SLG-012-HIN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeOrder
TT-SLG-012-HINNBlackReelOrder online

Specifications

Product Overview

Product CategoryFiber Multi-Loose Tube Cable
Suitable ApplicationsExtended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

Fiber Specifications

Fiber TypeOS2
Fiber Core Diameter8.2/125 μm
Fiber Diameter250 μm
Fiber Count12
Fiber Color CodingTIA-598-D

Cable Construction

Number of Active Subunits1
Number of Fillers4
Fibers Per Subunit12
Subunit WaterblockingGel Filled
Subunit Diameter0.110 in (2.8 mm)
Central Strength Member TypeGRP
Core Wrap MaterialWaterblocking Tape

Inner Jacket Specifications

Inner Jacket Strength MemberWaterblocking Aramid Yarns
MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter@InnerJacket1 (cnv)0.454 in (11.5 mm)
ColorBlack
Number of Inner Jacket Ripcords1

Armor Specifications

Armor Type and MaterialAIA - Aluminum Interlock Armor

Outer Jacket Specifications

Strength MemberWaterblocking Aramid Yarns
Jacket MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter0.805 in (20.4 mm)

Optical Characteristics

Wavelength1310 nm1550 nm
Max. Attenuation0.40 dB/km0.30 dB/km
Mode Field Diameter9.2 μm10.4 μm
1 Gigabit Ethernet Performance5,000 m-
10 Gigabit Ethernet Performance10,000 m40,000 m

Mechanical Characteristics

Minimum Bend Radius During Installation20x Cable OD
Minimum Bend Radius During Operation10x Cable OD
Max. Tensile Strength During Installation2670 N (600 lbf)
Max. Tensile Strength During Operation800 N (180 lbf)
Crush Resistance440 N/cm
Bulk Cable Weight253 lbs/kft (376 kg/km)

Temperature Range

Installation Temperature Range-10°C to +60°C
Operating Temperature Range-40°C to +70°C
Storage Temperature Range-40°C to +70°C

Standards and Compliance

Environmental SuitabilityIndoor/Outdoor, Sunlight Resistance, Burial
SustainabilityCA Prop 65
Flammability / Reaction to FireOFCG-ST1, FT4
ICEA ComplianceS-104-696
Other Standard Compliance(s)NFPA 130, NFPA 502

History

Update and RevisionRevision Number: 0.34 Revision Date: 09-07-2025
