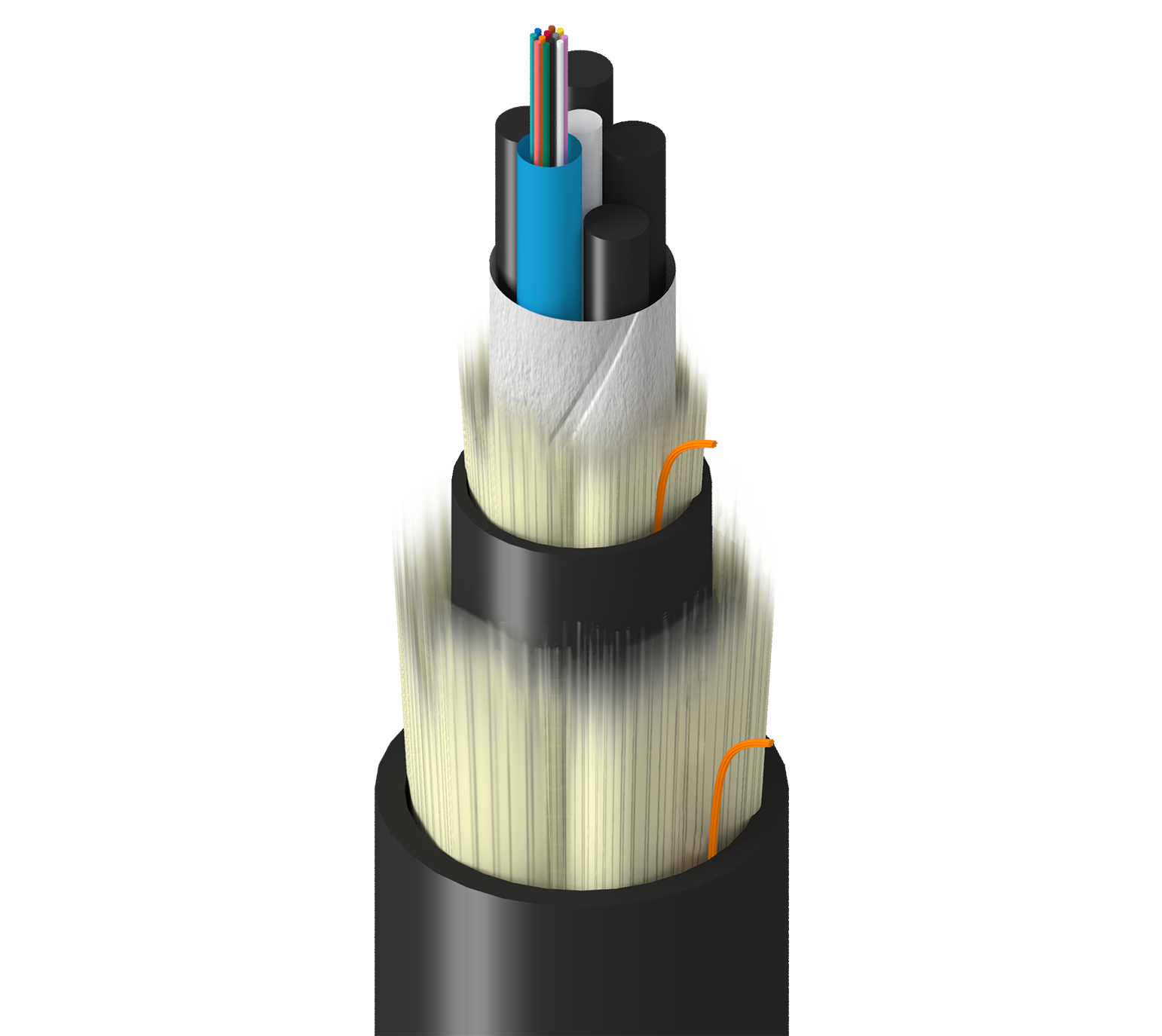

Transit, In+Outdoor, Artic MLT, OS2, 12f, Dry Tubes 2.8mm, Dbl Jkt - LSZH, OFNG-ST1, Oil Res 2
Transit Grade, Indoor/Outdoor, Artic Multi-Loose-Tube, OS2, 12 Fibers, Dry Tubes 2.8mm, Double Jacket - LSZH, OFNG-ST1, Oil Res 2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
TT-SAD-012-H23 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| TT-SAD-012-H23N | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations |
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 12 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 5 |
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Free |
| Subunit Diameter | 0.110 in (2.8 mm) |
| Subunit Color | Blue |
| Central Strength Member Type | GRP |
| Core Wrap Material | Waterblocking tape |
Inner Jacket Specifications
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Color | Black |
Outer Jacket Specifications
| Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter | 0.575 in (14.6 mm) |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.35 dB/km | 0.25 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5000 m | - |
| 10 Gigabit Ethernet Performance | - | - |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 4400 N (990 lbf) |
| Max. Tensile Strength During Operation | 1300 N (290 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 140 lbs/kft (209 kg/km) |
Temperature Range
| Installation Temperature Range | -30C to +50C |
|---|---|
| Operating Temperature Range | -50C to +70C |
| Storage Temperature Range | -50C to +70C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | OFNG-ST1, FT4 |
| ICEA Compliance | S-104-696 |
History
| Update and Revision | Revision Number: 0.27 Revision Date: 09-07-2025 |
|---|
