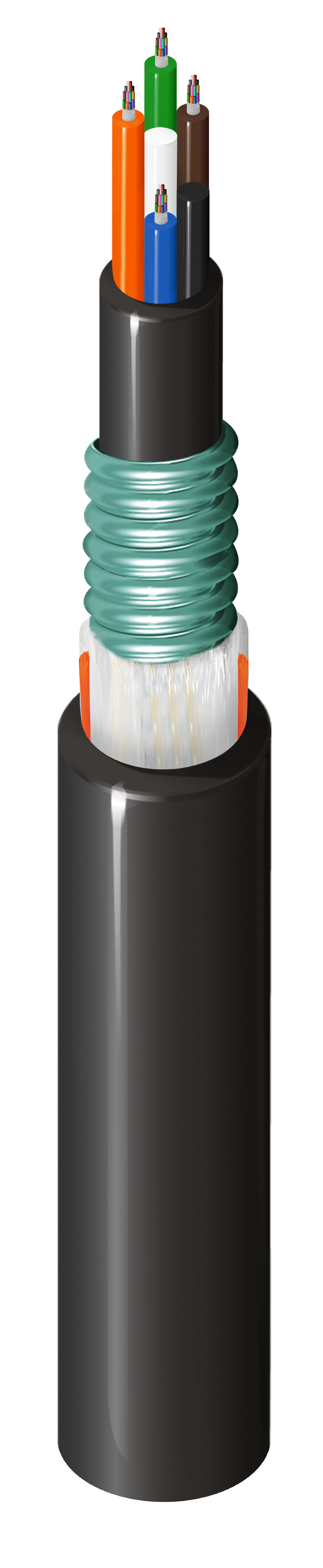

TM-SLG-048-MSAN

Product Number: TM-SLG-048-MSAN

MarineTuff Grade Indoor/Outdoor Multi-Loose Tube OS2 48 Fibers Gel Filled Tubes 2.5 mm Corrugated Steel Tape Single Jacket Black LSZH OFCR ABS Approved

Marine Grade, Indoor/Outdoor, Multi-Loose Tube, OS2, 48 Fibers, Gel Filled Tubes 2.5 mm, Corrugated Steel Tape, Single Jacket, Black, LSZH, OFCR, ABS Approved

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

TM-SLG-048-MSAN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeOrder
TM-SLG-048-MSANBlackReelOrder online

Specifications

Product Overview

Product CategoryFiber Multi-Loose Tube Cable
Suitable ApplicationsExtended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations

Fiber Specifications

Fiber TypeOS2, G.657.A1, G.652.D
Fiber Diameter250 μm
Fiber Count48
Fiber Color CodingTIA-598-D

Cable Construction

Number of Active Subunits4
Number of Fillers1
Fibers Per Subunit12
Subunit WaterblockingGel Filled
Subunit Diameter0.098 in (2.5 mm)
Subunit ColorTIA-598-D
Central Strength Member TypeGRP
Core Wrap MaterialWater Block Tape

Armor Specifications

Armor Type and MaterialCST - Corrugated Steel Tape

Outer Jacket Specifications

Strength MemberFiberglass Yarns
Jacket MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)
Nom. Diameter0.520 in (13.2 mm)
Outer Jacket ColorBlack
Outer Jacket Ripcord2

Optical Characteristics

Wavelength1310 nm1550 nm
Max. Attenuation0.35 dB/km0.25 dB/km
10 Gigabit Ethernet Performance10,000 m50,000 m
40 Gigabit Ethernet Performance10,000 m--
100 Gigabit Ethernet Performance10,000 m--

Mechanical Characteristics

Minimum Bend Radius During Installation20x Cable OD
Minimum Bend Radius During Operation10x Cable OD
Max. Tensile Strength During Installation2670 N (600 lbf)
Max. Tensile Strength During Operation800 N (180 lbf)
Crush Resistance220 N/cm
Bulk Cable Weight118 lbs/kft (176 kg/km)

Temperature Range

Installation Temperature Range-10°C to +60°C
Operating Temperature Range-40°C to +70°C
Storage Temperature Range-40°C to +70°C

Standards and Compliance

Environmental SuitabilityIndoor/Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to FireUL 1666, UL 1685
NEC / UL ComplianceOFCR
CEC / C(UL) ComplianceOFNG-ST1.
ICEA ComplianceS-104-696
TIA/EIA Compliance568.3, 598-D
European Directive ComplianceEU Directive 2015/863/EU (RoHS 2 amendment)

History

Update and RevisionRevision Number: 0.6 Revision Date: 04-17-2026
