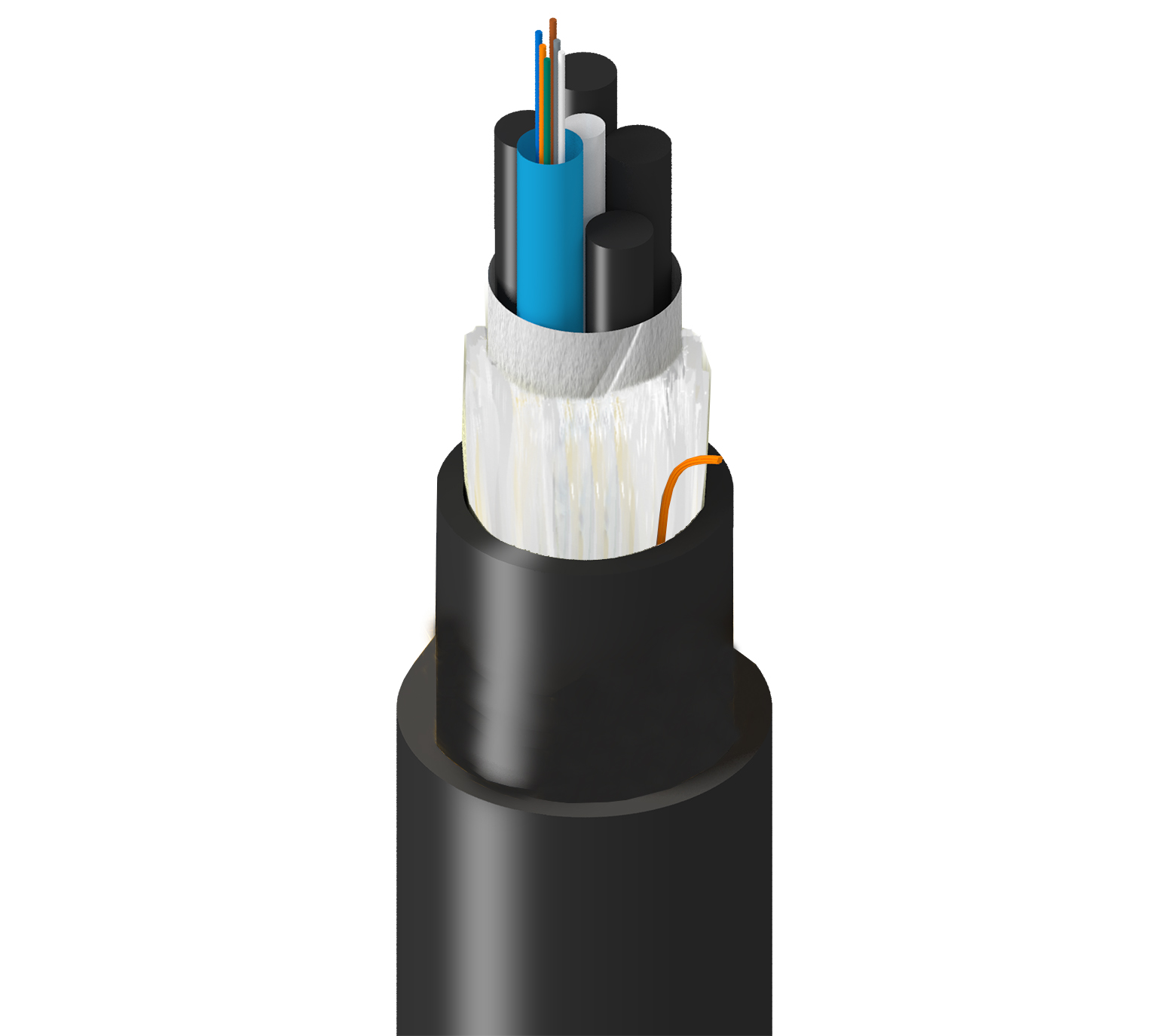

Marine Grade, Indoor/Outdoor, Multi-Loose-Tube, OS2, 6 Fibers, Gel Filled Tubes 2.5mm, Bronze Braid Armor, Double Jacket
Marine Grade, Indoor/Outdoor, Multi-Loose-Tube, OS2, 6 Fibers, Gel Filled Tubes 2.5mm, Bronze Braid Armor, Double Jacket, Black LSZH, OFCG-ST1, ABS Approved
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
TM-SLF-006-HBA is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| TM-SLF-006-HBAN | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Resistant |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Count | 6 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 4 |
| Fibers Per Subunit | 6 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 0.098 in (2.5 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | GRP |
Inner Jacket Specifications
| Inner Jacket Strength Member | Fiberglass Yarns |
|---|---|
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nominal Diameter@InnerJacket1 (cnv) | 0.437 in (11.1 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 1 |
Armor Specifications
| Armor Type and Material | BBA - Bronze Braid Armor |
|---|
Outer Jacket Specifications
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 0.622 in (15.8 mm) |
| Outer Jacket Color | Black |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.35 dB/km | 0.25 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
| 40 Gigabit Ethernet Performance | 10,000 m | -- |
| 100 Gigabit Ethernet Performance | 10,000 m | -- |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 247 lbs/kft (368 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | UL1666, UL 1685 |
| NEC / UL Compliance | OFCR-ST1 |
| CEC / C(UL) Compliance | OFCG-ST1. |
| ICEA Compliance | S-104-696 |
| TIA/EIA Compliance | 568.3, 598-D |
| Marine Compliance | ABS |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.31 Revision Date: 06-22-2026 |
|---|
