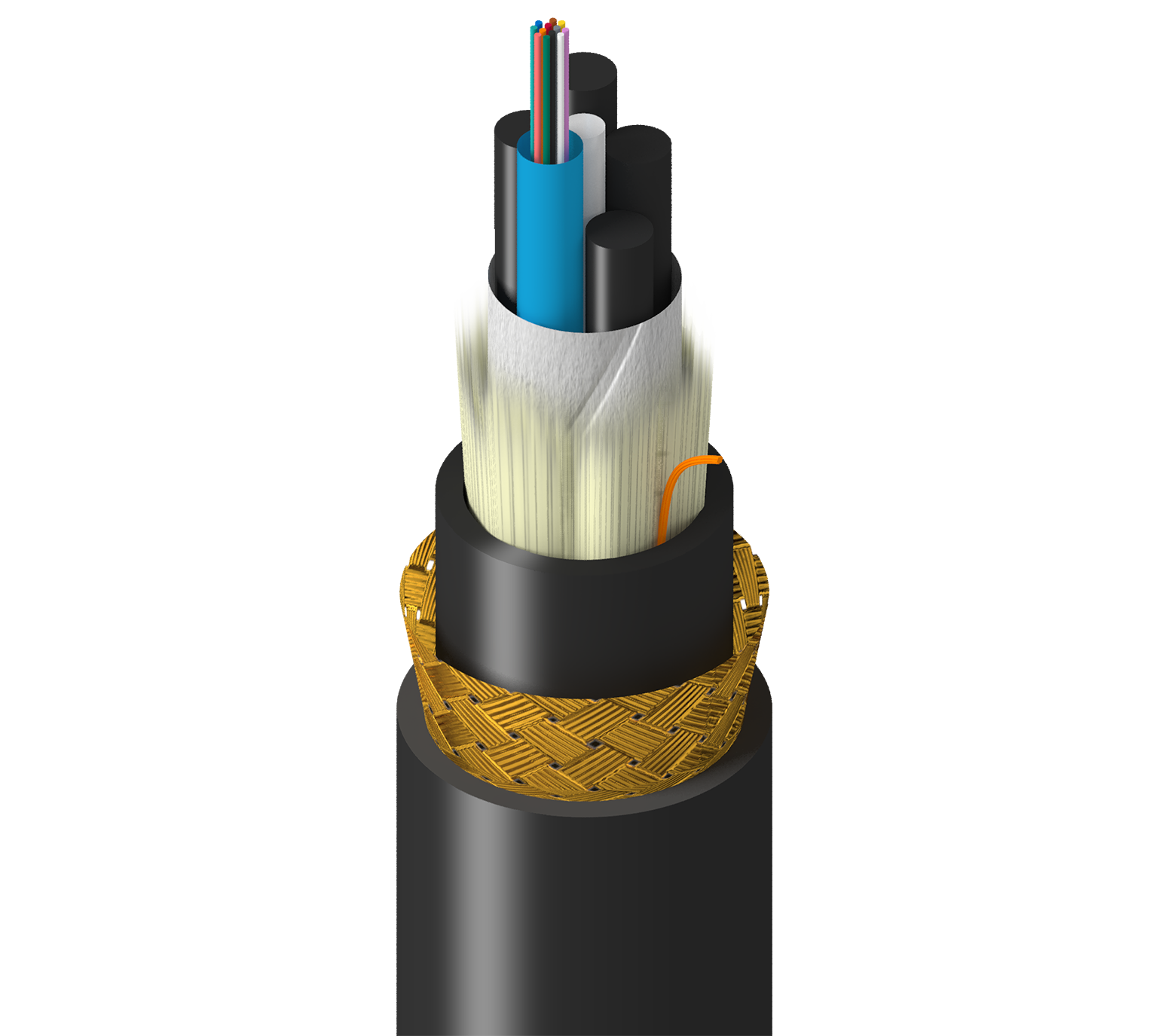

Product Number: TM-1LG-012-HBA

Marine, In+Outdoor, MLT, OM1, 12f, Gel Tubes 2.8mm, BBA, Dbl Jkt - LSZH, OFCG-ST1, ABS

Marine Grade, Indoor/Outdoor, Multi-Loose-Tube, OM1, 12 Fibers, Gel Filled Tubes 2.8mm, Bronze Braid Armor, Double Jacket - LSZH, OFCG-ST1, ABS Approved

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

TM-1LG-012-HBA is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
TM-1LG-012-HBAN	Black	Reel	Order online

Specifications

Product Overview

Product Category	Fiber Multi-Loose Tube Cable
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

Fiber Specifications

Fiber Type	OM1
Fiber Core Diameter	62.5/125 μm
Fiber Diameter	250 μm
Fiber Count	12
Fiber Color Coding	TIA-598-D

Cable Construction

Number of Active Subunits	1
Number of Fillers	4
Fibers Per Subunit	12
Subunit Waterblocking	Gel Filled
Subunit Diameter	0.110 in (2.8 mm)
Subunit Color	TIA-598-D
Central Strength Member Type	GRP
Core Wrap Material	Waterblocking tape

Inner Jacket Specifications

Inner Jacket Strength Member	Waterblocking Aramid Yarns
Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter@InnerJacket1 (cnv)	0.460 in (11.7 mm)
Color	Black
Number of Inner Jacket Ripcords	1

Armor Specifications

Armor Type and Material	BBA - Bronze Braid Armor

Outer Jacket Specifications

Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	0.645 in (16.4 mm)

Optical Characteristics

Wavelength	850 nm	1300 nm
Max. Attenuation	3.25 dB/km	1.0 dB/km
1 Gigabit Ethernet Performance	300 m	550 m
10 Gigabit Ethernet Performance	33 m	-
Min. Restricted Mode Launch	220 MHz.km	-
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Mechanical Characteristics

Minimum Bend Radius During Installation	20x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	440 N/cm
Bulk Cable Weight	247 lbs/kft (368 kg/km)

Temperature Range

Installation Temperature Range	-10°C to +60°C
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +70°C

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	OFCG-ST1, FT4
ICEA Compliance	S-104-696
IEEE Compliance	IEEE 45, IEEE 1580 (braid only)
Marine Compliance	ABS

History

Update and Revision	Revision Number: 0.22 Revision Date: 09-07-2025
