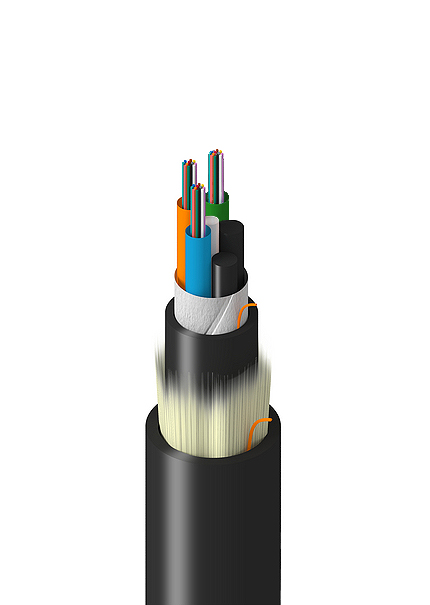

Product Number: TF-SLD-036-RX5N

Indoor/Outdoor Multi-Loose-Tube OS2 36 Fibers Dry Tubes 2.5mm Rodent Protected Double Jacket

Factory Grade, Indoor/Outdoor, Multi-Loose-Tube, OS2, 36 Fibers, Dry Tubes 2.5mm, Rodent Protected, Double Jacket, Black, PVC, OFNR, Ozone-UV-Chem Resistant

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

TF-SLD-036-RX5N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Order
TF-SLD-036-RX5N	Black	Order online

Specifications

Product Overview

Product Category	Fiber Multi-Loose Tube Cable
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/ Outdoor & Wet Locations, Rodent Proof, UV Resistant

Fiber Specifications

Fiber Type	OS2, G.657.A1, G.652.D
Fiber Diameter	250 μm
Fiber Count	36
Fiber Color Coding	TIA-598-D

Cable Construction

Number of Active Subunits	3
Number of Fillers	2
Fibers Per Subunit	12
Subunit Waterblocking	Gel Free
Subunit Diameter	0.098 in (2.5 mm)
Subunit Color	TIA-598-D
Central Strength Member Type	GRP

Inner Jacket Specifications

Inner Jacket Strength Member	Fiberglass Yarns
Material	PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1 (cnv)	0.346 in (8.8 mm)
Color	Black
Number of Inner Jacket Ripcords	1

Outer Jacket Specifications

Strength Member	Fiberglass Yarns
Jacket Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.501 in (12.7 mm)
Outer Jacket Color	Black
Outer Jacket Ripcord	1

Optical Characteristics

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.35 dB/km	0.25 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m
40 Gigabit Ethernet Performance	10,000 m	--
100 Gigabit Ethernet Performance	10,000 m	--

Mechanical Characteristics

Minimum Bend Radius During Installation	15xCable OD
Minimum Bend Radius During Operation	10xCable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	98 lbs/kft (146 kg/km)

Temperature Range

Installation Temperature Range	-10°C to +60°C
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +70°C

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1666, UL 1685, FT4
NEC / UL Compliance	OFNR
CEC / C(UL) Compliance	OFNR.
ICEA Compliance	S-104-696
TIA/EIA Compliance	598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)

History

Update and Revision	Revision Number: 0.8 Revision Date: 11-04-2025
