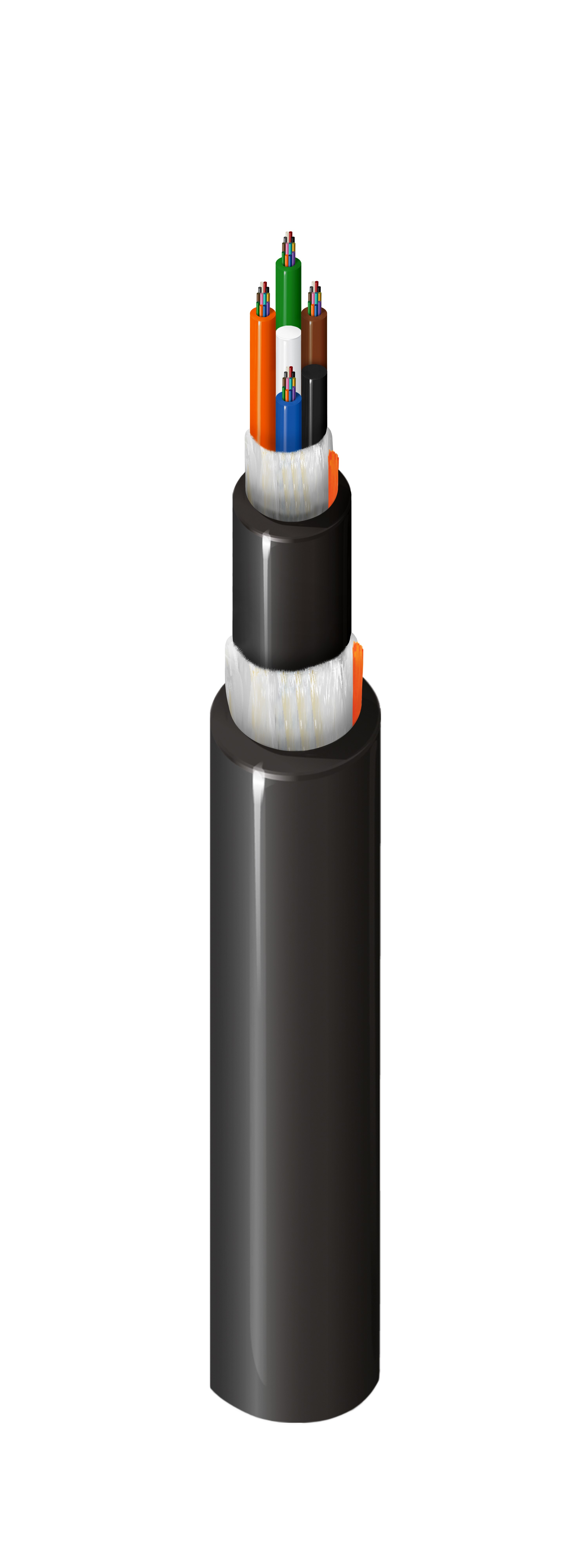

Mining Grade Indoor/Outdoor Multi-Loose-Tube OM1 48 Fibers Dry Tubes 2.5mm Rodent Resistant Double Jacket LSZH OFNR-ST1 Ozone-UV-Chem Resistant MSHA
Mining Grade, Indoor/Outdoor, Multi-Loose-Tube, OM1, 48 Fibers, Dry Tubes 2.5mm, Rodent Resistant, Double Jacket, Black, LSZH, OFNR-ST1, Ozone-UV-Chem Resistant, MSHA Approved
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
TE-1LD-048-LX5N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| TE-1LD-048-LX5N | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Mining, Harsh Environment, IoT, Factory or Process Automation, IP Cameras And Devices, Data Communication |
Fiber Specifications
| Fiber Type | OM1 |
|---|---|
| Fiber Core Diameter | 62.5/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 48 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 4 |
|---|---|
| Number of Fillers | 1 |
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Free |
| Subunit Diameter | 0.098 in (2.5 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | GRP |
Inner Jacket Specifications
| Inner Jacket Strength Member | Fiberglass Yarns |
|---|---|
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nominal Diameter@InnerJacket1 (cnv) | 0.371 in (9.4 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 1 |
Outer Jacket Specifications
| Strength Member | Fiberglass Yarns |
|---|---|
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter | 0.539 in (13.7 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.5 dB/km | 1.25 dB/km |
| 10 Gigabit Ethernet Performance | 33 m | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 4448 N (1000lbf) |
| Max. Tensile Strength During Operation | 1320 N (300lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 109 lbs/kft (162 kg/km) |
Temperature Range
| Installation Temperature Range | -30°C to +60°C |
|---|---|
| Operating Temperature Range | -50°C to +85°C |
| Storage Temperature Range | -50°C to +85°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Oil Resistance - Good chemical and oil resistance |
|---|---|
| Flammability / Reaction to Fire | UL1666, UL 1685 |
| NEC / UL Compliance | OFNR-ST1 |
| CEC / C(UL) Compliance | OFNG-ST1. |
| ICEA Compliance | S-104-696 |
| TIA/EIA Compliance | 568.3, 598-D |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
Product Notes
| Notes | Ozone Resistance, PMSHA - 07-KA250004-MSHA |
|---|
History
| Update and Revision | Revision Number: 0.6 Revision Date: 06-16-2026 |
|---|
