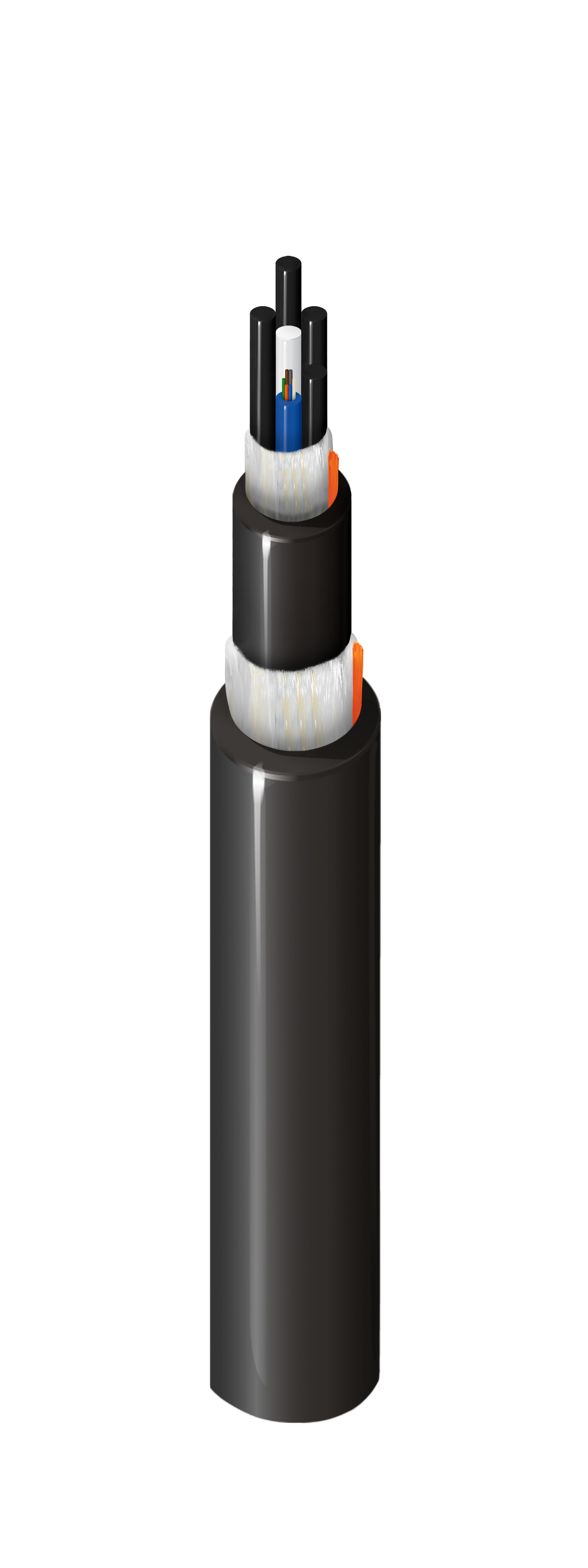

Product Number: TE-1LC-006-LX5N

Mining Grade Indoor/Outdoor Multi-Loose-Tube OM1 6 Fibers Dry Tubes 2.5mm Rodent Resistant Double Jacket LSZH OFNR-ST1 Ozone-UV-Chem Resistant MSHA

Mining Grade, Indoor/Outdoor, Multi-Loose-Tube, OM1, 6 Fibers, Dry Tubes 2.5mm, Rodent Resistant, Double Jacket, Black, LSZH, OFNR-ST1, Ozone-UV-Chem Resistant, MSHA Approved

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

TE-1LC-006-LX5N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
TE-1LC-006-LX5N	Black	Reel	Order online

Specifications

Product Overview

Product Category	Fiber Multi-Loose Tube Cable
Suitable Applications	Mining, Harsh Environment, IoT, Factory or Process Automation, IP Cameras And Devices, Data Communication

Fiber Specifications

Fiber Type	OM1
Fiber Core Diameter	62.5/125 μm
Fiber Diameter	250 μm
Fiber Count	6
Fiber Color Coding	TIA-598-D

Cable Construction

Number of Active Subunits	1
Number of Fillers	4
Fibers Per Subunit	6
Subunit Waterblocking	Gel Free
Subunit Diameter	0.098 in (2.5 mm)
Central Strength Member Type	GRP

Inner Jacket Specifications

Inner Jacket Strength Member	Fiberglass Yarns
Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter@InnerJacket1 (cnv)	0.371 in (9.4 mm)
Color	Black
Number of Inner Jacket Ripcords	1

Outer Jacket Specifications

Strength Member	Fiberglass Yarns
Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	0.539 in (13.7 mm)
Outer Jacket Color	Black
Outer Jacket Ripcord	1

Optical Characteristics

Wavelength	850 nm	1300 nm
Max. Attenuation	3.5 dB/km	1.25 dB/km
10 Gigabit Ethernet Performance	33 m	--
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Mechanical Characteristics

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	4448 N (1000lbf)
Max. Tensile Strength During Operation	1320 N (300lbf)
Crush Resistance	440 N/cm
Bulk Cable Weight	109 lbs/kft (162 kg/km)

Temperature Range

Installation Temperature Range	-30°C to +60°C
Operating Temperature Range	-50°C to +85°C
Storage Temperature Range	-50°C to +85°C

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, Oil Resistance - Good chemical and oil resistance
Flammability / Reaction to Fire	UL1666, UL 1685
NEC / UL Compliance	OFNR-ST1
CEC / C(UL) Compliance	OFNG-ST1.
ICEA Compliance	S-104-696
TIA/EIA Compliance	568.3, 598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)

Product Notes

Notes	Ozone Resistance, PMSHA - 07-KA250004-MSHA

History

Update and Revision	Revision Number: 0.6 Revision Date: 06-16-2026
