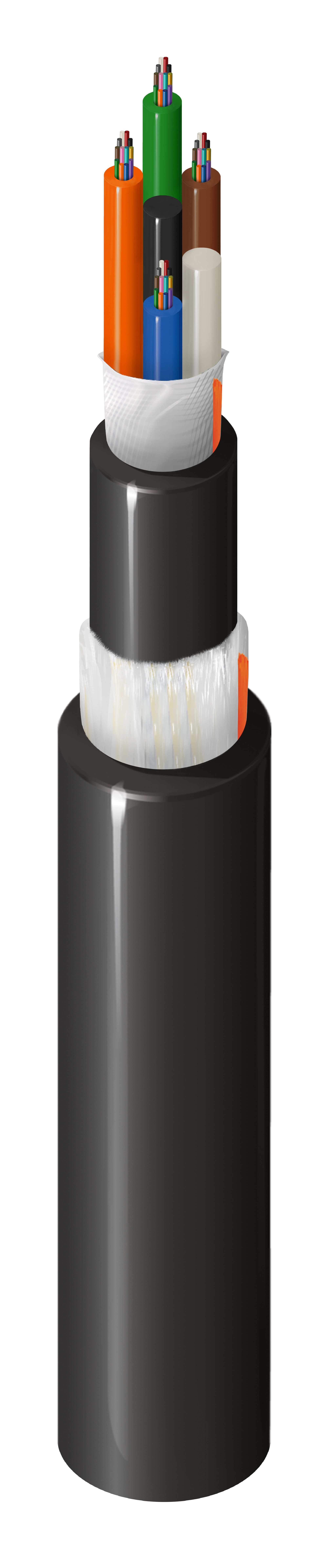

Outdoor Heavy Duty Loose Tube OS2 48 Fibers OSP Sub-Units (12F) Dry
FX Outdoor, Heavy Duty Loose Tube, OS2, 48 Fibers, OSP, Sub-Units(12F) Dry, Black Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Campus Area Network, Long Haul, Backbone |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Count | 48 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 4 |
|---|---|
| Number of Fillers | 1 |
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Free |
| Subunit Diameter | 0.098 in (2.5 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | GRP |
| Core Wrap Material | Waterblock Tape |
Inner Jacket Specifications
| Material | PE - Polyethylene |
|---|---|
| Nominal Diameter@InnerJacket1 (cnv) | 0.347 in (8.8 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 1 |
Outer Jacket Specifications
| Strength Member | Waterblocking Fiberglass Yarns |
|---|---|
| Jacket Material | PE - Polyethylene |
| Nom. Diameter | 0.477 in (12.1 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.35 dB/km | 0.25 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 72 lbs/kft (107 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| Sustainability | Product LensTM, Environmental Product Declaration (EPD) Available |
| ICEA Compliance | S-87-640 |
| TIA/EIA Compliance | 598-D |
| Telcordia Compliance | Telcordia GR-20 |
History
| Update and Revision | Revision Number: 0.13 Revision Date: 09-18-2025 |
|---|
