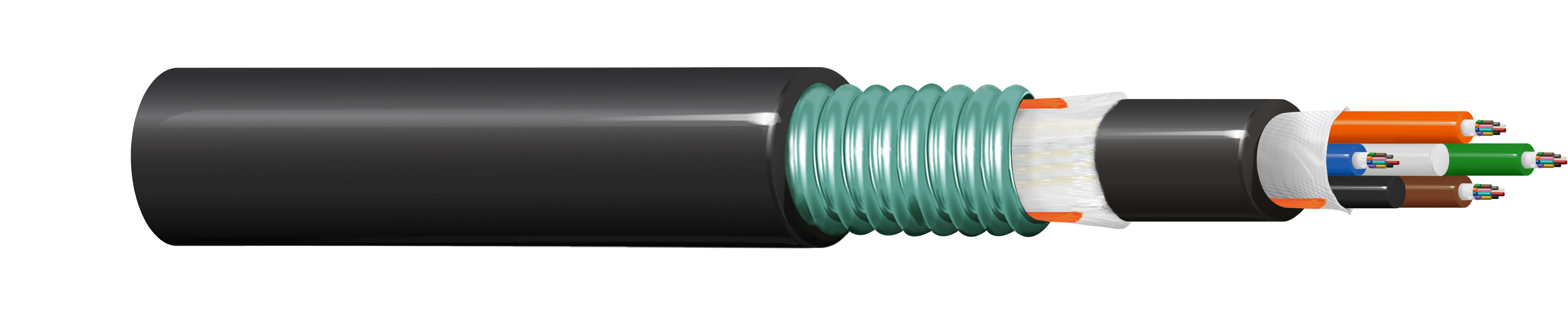

Outdoor Heavy Duty Loose Tube OS2 48 Fibers OSP Corrugated Steel Tape Armor Sub-Units (12F) Dry
FX Outdoor, Heavy Duty Loose Tube, OS2, 48 Fibers, OSP Corrugated Steel Tape Armor, Sub-Units (12F) Dry, Black Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FSSH0486D is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| FSSH0486D | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Campus Area Network, Long Haul, Backbone |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Count | 48 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 4 |
|---|---|
| Number of Fillers | 1 |
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Free |
| Subunit Diameter | 0.098 in (2.5 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | GRP |
| Cable Core Water Blocking | Waterblock Tape |
Inner Jacket Specifications
| Material | PE - Polyethylene |
|---|---|
| Nominal Diameter@InnerJacket1 (cnv) | 0.347 in (8.8 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 1 |
Armor Specifications
| Armor Type and Material | CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
| Strength Member | Fiberglass Yarns |
|---|---|
| Jacket Material | PE - Polyethylene |
| Nom. Diameter | 0.600 in (15.2 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 2 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.35 dB/km | 0.25 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
| 40 Gigabit Ethernet Performance | 10,000 m | |
| 100 Gigabit Ethernet Performance | 10,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 120 lbs/kft (179 kg/km) |
Temperature Range
| Installation Temperature Range | -30°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance, Burial |
|---|---|
| ICEA Compliance | S-87-640 |
| TIA/EIA Compliance | 568.3, 598-D |
| Telcordia Compliance | Telcordia GR-20 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.18 Revision Date: 11-20-2025 |
|---|
