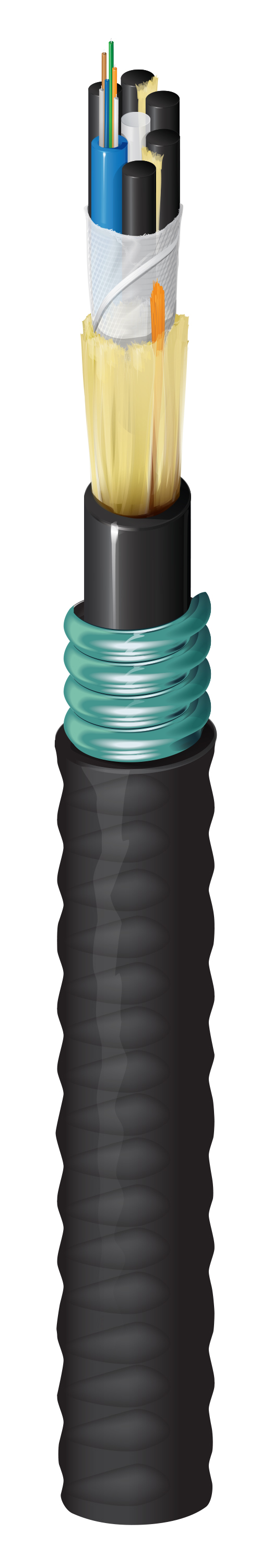

Outdoor Heavy Duty Loose Tube OS2 6 Fibers
FX Outdoor Heavy Duty Loose Tube OS2 6 Fibers OSP Corrugated Steel Tape Armor Sub-Units (6F) Gel Black
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FSSH0066F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FSSH0066F | Black | Reel | 612825372271 | Order online |
Specifications
Product Overview
| Suitable Applications | Campus Area Network, Long Haul, Backbone |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 6 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 4 |
| Fibers Per Subunit | 6 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 0.078 in (2.0 mm) |
| Central Strength Member Type | GRP |
| Core Wrap Material | Nomex tape |
| Cable Core Water Blocking | Waterblock Tape |
Inner Jacket Specifications
| Inner Jacket Strength Member | Aramid Yarns |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nominal Diameter@InnerJacket1 (cnv) | 0.324 in (8.2 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 2 |
Armor Specifications
| Armor Type and Material | CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.530 in (13.5 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 2 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.40 dB/km | 0.30 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5,000 m | - |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 101 |
Temperature Range
| Installation Temperature Range | -30°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Sustainability | CA Prop 65 |
| ICEA Compliance | S-87-640 |
| TIA/EIA Compliance | ANSI/ICEA S-87-640 |
History
| Update and Revision | Revision Number: 0.100 Revision Date: 09-07-2025 |
|---|
