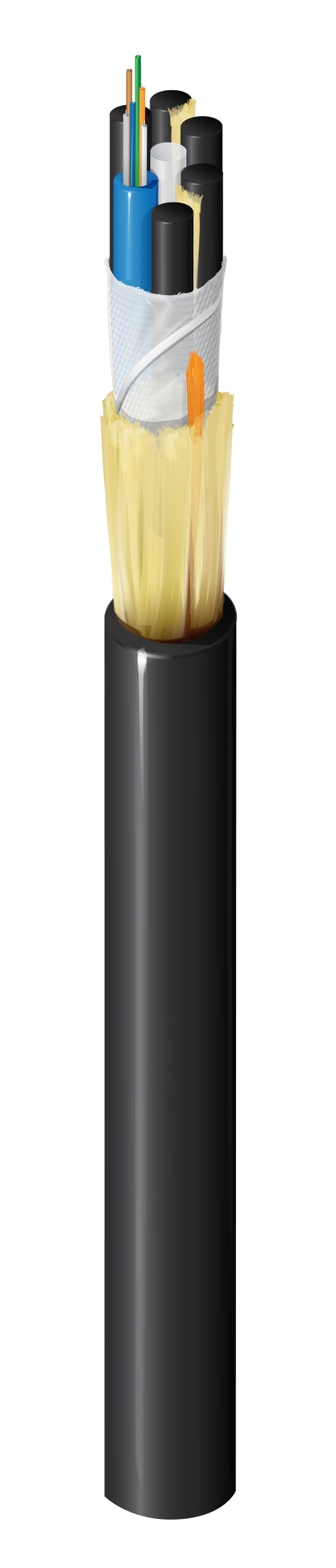

Loose Tube OM1 6 Fibers OSP Dry Block
FX Outdoor Loose Tube OM1 6 Fibers OSP Sub-Units(6F) Dry Black
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FS1L006NC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FS1L006NC | Black | Reel | 612825383796 | Order online |
Specifications
Product Overview
| Suitable Applications | Campus Area Network, Long Haul, Backbone |
|---|
Fiber Specifications
| Fiber Type | OM1 |
|---|---|
| Fiber Core Diameter | 62.5/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 6 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 4 |
| Fibers Per Subunit | 6 |
| Subunit Waterblocking | Gel Free |
| Central Strength Member Type | GRP |
| Cable Core Water Blocking | Waterblock Tape |
Inner Jacket Specifications
| Material | PE - Polyethylene |
|---|
Outer Jacket Specifications
| Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Jacket Material | PE - Polyethylene |
| Nom. Diameter | 0.40 in (10.2 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.25 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 300 m | 550 m |
| 10 Gigabit Ethernet Performance | 33 m | -- |
| Min. Restricted Mode Launch | 220 MHz-km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz-km | 500 MHz-km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 43 lbs/kft (64 kg/km) |
Temperature Range
| Installation Temperature Range | -30C to +70C |
|---|---|
| Operating Temperature Range | -40C to +70C |
| Storage Temperature Range | -40C to +75C |
Standards and Compliance
| Environmental Suitability | Outdoor, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| ICEA Compliance | S-87-640 |
| TIA/EIA Compliance | ANSI/ICEA S-87-640 |
History
| Update and Revision | Revision Number: 0.77 Revision Date: 09-07-2025 |
|---|
