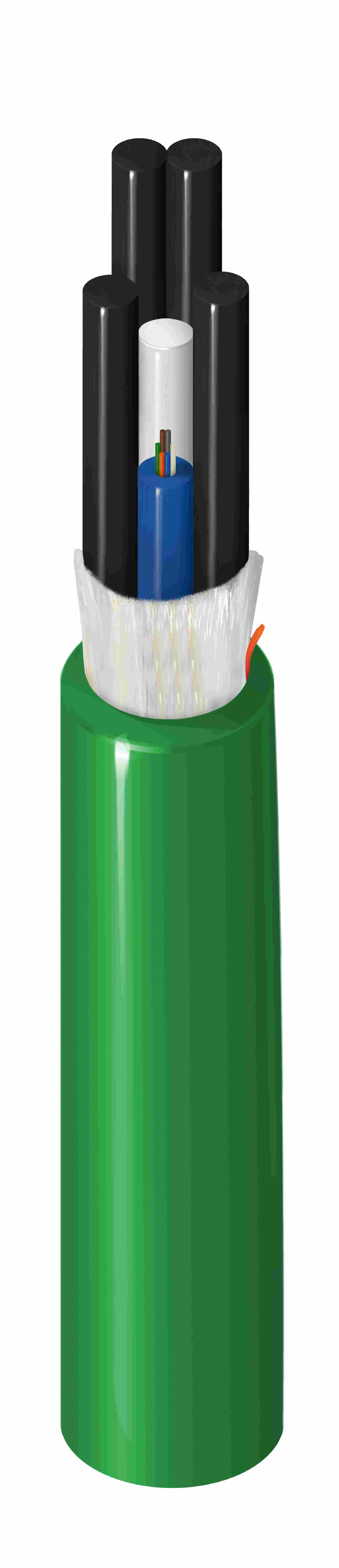

Indoor/Outdoor Loose Tube OM4 6 Fibers LSZH/OFNR Sub-Units(6F) Dry
FX Indoor/Outdoor, Loose Tube, OM4, 6 Fibers, LSZH/OFNR, Sub-Units(6F) Dry, Green Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FD4L006LCG is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| FD4L006LCG | Green | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Campus Area Network, Long Haul, Backbone |
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 6 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 4 |
| Fibers Per Subunit | 6 |
| Subunit Waterblocking | Gel Free |
| Subunit Diameter | 0.098 in (2.5 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | GRP |
Outer Jacket Specifications
| Strength Member | Fiberglass Yarns |
|---|---|
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter | 0.411 in (10.4 mm) |
| Outer Jacket Color | Green |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 10 Gigabit Ethernet Performance | 400 | -- |
| 40 Gigabit Ethernet Performance | 150 m | -- |
| 100 Gigabit Ethernet Performance | 100 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 4700 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 75 lbs/kft (112 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1666, UL 1685 |
| NEC / UL Compliance | OFNR-ST1 |
| CEC / C(UL) Compliance | FT4. |
| ICEA Compliance | S-104-696 |
| TIA/EIA Compliance | 568.3, 598-D |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.4 Revision Date: 05-07-2026 |
|---|
