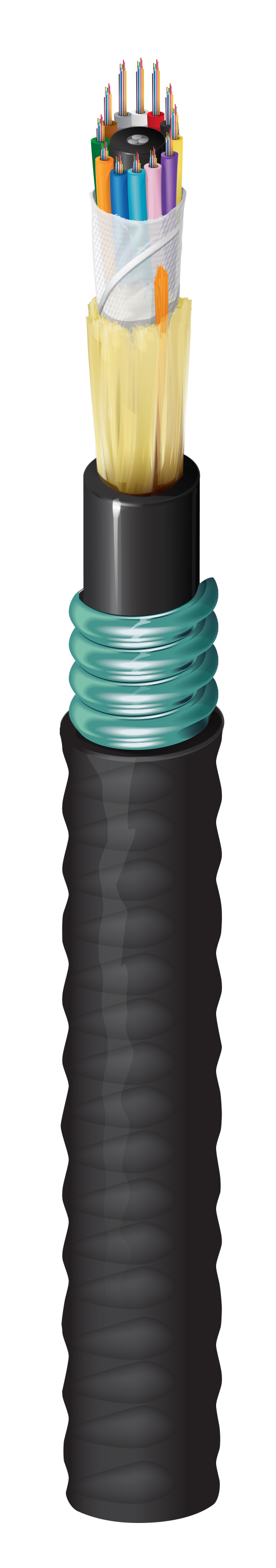

Indoor/Outdoor Riser Heavy Duty Loose Tube OM1 144f
FX Indoor/Outdoor Heavy Duty Loose Tube OM1 144 Fibers OFCR Corrugated Steel Tape Armor Sub-Units (12F) Gel Black
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FD1H1445G is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FD1H1445G | Black | Reel | 612825373650 | Order online |
Specifications
Product Overview
| Suitable Applications | Campus Area Network, Backbone |
|---|
Fiber Specifications
| Fiber Type | OM1 |
|---|---|
| Fiber Core Diameter | 62.5/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 144 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 12 |
|---|---|
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 0.110 in (2.8 mm) |
| Central Strength Member Type | Upjacketed GRP |
| Core Wrap Material | Waterblocking tape |
| Cable Core Water Blocking | Waterblock Tape |
Inner Jacket Specifications
| Inner Jacket Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nominal Diameter@InnerJacket1 (cnv) | 0.641 in (16.3 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 2 |
Armor Specifications
| Armor Type and Material | CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.880 in (22.4 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 2 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.25 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 300 m | 550 m |
| 10 Gigabit Ethernet Performance | 33 m | - |
| Min. Restricted Mode Launch | 220 MHz.km | - |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 295 |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | OFCR, FT4 |
| ICEA Compliance | S-104-696 |
| TIA/EIA Compliance | ANSI/ICEA S-104-696 |
History
| Update and Revision | Revision Number: 0.175 Revision Date: 09-07-2025 |
|---|
