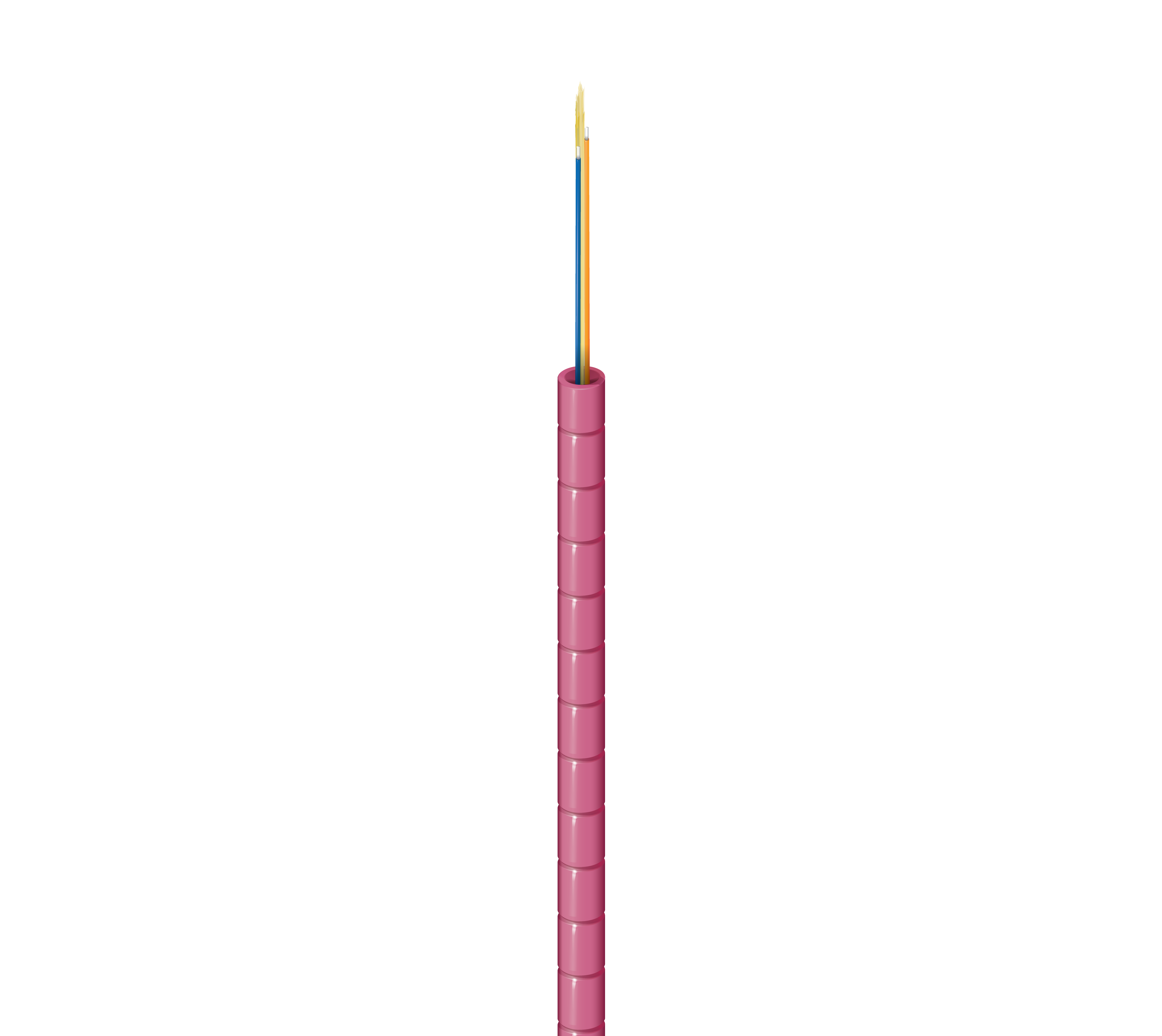

Indoor Plenum OM4 OptiTuffTM Mini Fiber Cable 2 Fibers
FX Indoor OM4 OptiTuffTM Mini Fiber Cable 2 Fibers OFNP Non-Unitized Erika Violet Jacket
- Availability
- Americas
- Status
- Active
Specifications
Product Overview
| Product Category | OptiTuffTM Mini Fiber Cable |
|---|---|
| Suitable Applications | Raised floor, Data Centers, POL/POLAN, FTTx |
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 2 |
| Fiber Color Coding | TIA-598-D |
Armor Specifications
| Armor Type and Material | ADA - All-Dielectric Armor |
|---|
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVDF - Polyvinylidene Fluoride |
| Nom. Diameter | 0.157 in (4.0 mm) |
| Outer Jacket Color | Erika Violet |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1,100 m | 550 m |
| 10 Gigabit Ethernet Performance | 400 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 4,700 m | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 3,500 m | 500 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 3.75x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 3.75x Cable OD |
| Max. Tensile Strength During Installation | 100 N (25 lbf) |
| Max. Tensile Strength During Operation | 45 N (10 lbf) |
| Crush Resistance | 220 N/cm |
| Crush Resistance (Recoverable Signal <lt/> +0.5 dB) | 2500 N/cm |
| Bulk Cable Weight | 8 lbs/kft (12 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | OFNP, FT6 |
| ICEA Compliance | S-83-596 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.145 Revision Date: 11-14-2024 |
|---|
