FISM012P2

Product Number: FISM012P2

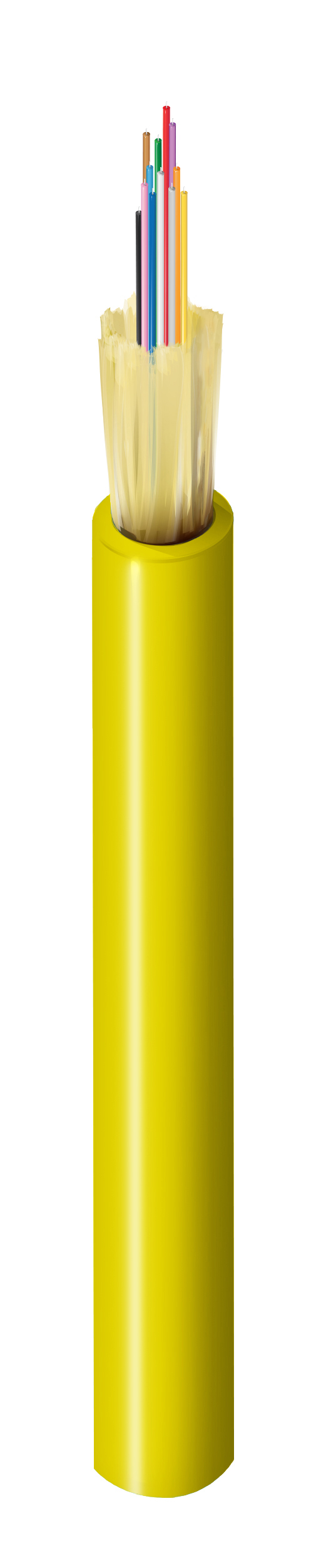

Indoor Plenum OS2 Mini-Distribution 12F 3.0 mm Yellow

FX Indoor OS2 Mini-Distribution 12 Fibers OFNP 3.0 MM Yellow Jacket

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

FISM012P2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeUPCOrder
FISM012P2YellowReel611589541831Order online

Specifications

Product Overview

Suitable ApplicationsIndoor, data center, patching, inside cabinets, workstation equipment connections

Fiber Specifications

Fiber TypeOS2
Fiber Core Diameter8.2/125 μm
Fiber Diameter250 μm
Fiber Count12
Fiber Color CodingTIA-598-D

Outer Jacket Specifications

Jacket MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.118 in (3.0 mm)
Outer Jacket ColorYellow

Optical Characteristics

WavelengthMax. Attenuation
1310 nm0.40 dB/km
1550 nm0.30 dB/km

Mechanical Characteristics

Minimum Bend Radius During Installation20 x Cable OD
Minimum Bend Radius During Operation10 x Cable OD
Max. Tensile Strength During Installation220 N (50 lbf)
Max. Tensile Strength During Operation75 N (17 lbf)
Crush Resistance35 N/cm
Bulk Cable Weight5.2 lbs/kft (7.81 kg/km)

Temperature Range

Installation Temperature Range0°C to +60°C
Operating Temperature Range0°C to +70°C
Storage Temperature Range-40°C to +70°C

Standards and Compliance

Environmental SuitabilityIndoor
SustainabilityCA Prop 65
NEC / UL ComplianceOFNP
CEC / C(UL) ComplianceFT6.
ICEA ComplianceS-83-596
Telcordia ComplianceGR-409

History

Update and RevisionRevision Number: 0.99 Revision Date: 02-20-2026
