Product Number: FIBM048P1

Indoor Mini-Distribution OS2 A2-B2 48 Fibers OFNP Sub-Units 2.0 mm (12F)

Name: Belden FIBM048P1
Brand: Belden
SKU: FIBM048P1

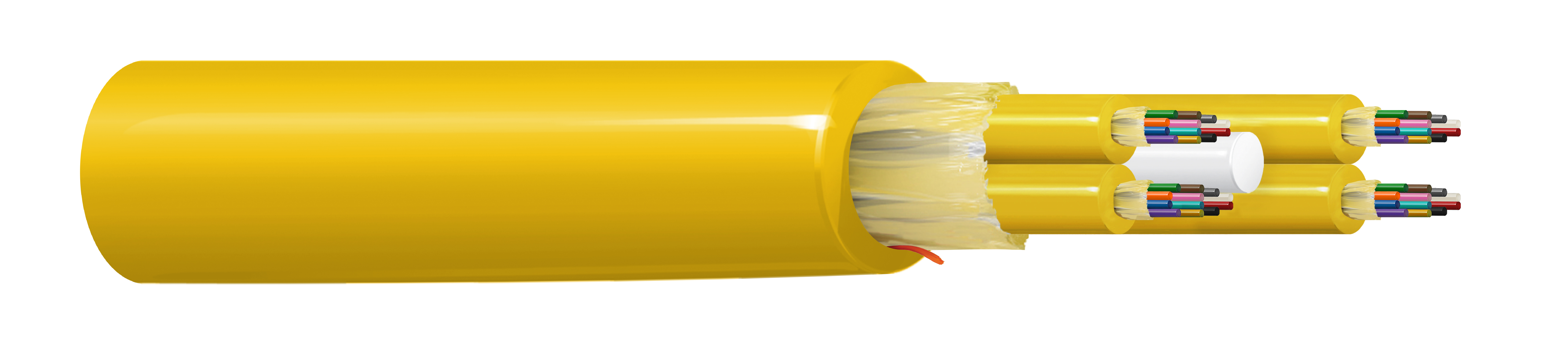

FX Indoor, Mini-Distribution, OS2 A2-B2, 48 Fibers, OFNP, Sub-Units 2.0 mm (12F), Yellow Jacket

Ships from and sold by A5 IT.

Part numbers

FIBM048P1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FIBM048P1	Yellow	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	4
Fibers Per Subunit	12
Subunit Diameter	0.078 in (2.0 mm)
Subunit Color	Yellow
Fiber SubUnit Strength Members	Aramid yarns
Central Strength Member Type	GRP

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.4 dB/km	0.3 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m
40 Gigabit Ethernet Performance	10,000 m	--
100 Gigabit Ethernet Performance	10,000 m	--

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	660 N (150lbf)
Max. Tensile Strength During Operation	200 N (45lbf)
Crush Resistance	100 N/cm
Bulk Cable Weight	41 lbs/kft (61 kg/km

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-83-596
TIA/EIA Compliance	568.3, 598-D
Telcordia Compliance	GR-409
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
