Product Number: FI5M024A2

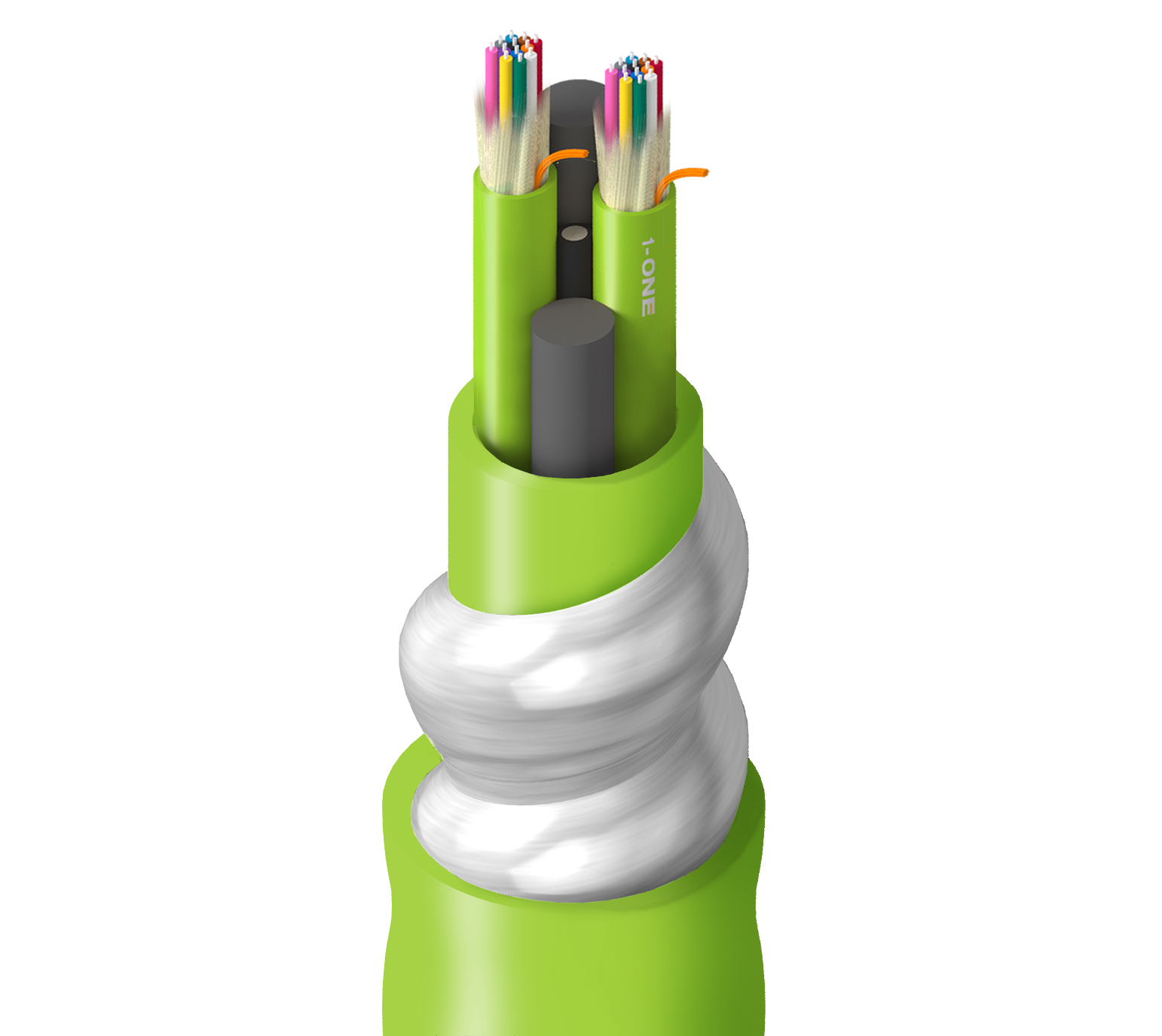

Indoor Plenum OM5 Mini-Distribution 24 Fibers Aluminium Interlocked 3mm SubUnits

Name: Belden FI5M024A2
Brand: Belden
SKU: FI5M024A2

FX Indoor, OM5, Mini-Distribution, 24 Fibers, OFCP, Aluminum Interlocked Armor, Sub-Unit (3.0mm), Lime Green Jacket

Ships from and sold by A5 IT.

Specifications

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Material	PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1 (cnv)	0.190 in (4.8 mm)
Color	Lime Green

Armor Type and Material	AIA - Aluminum Interlock Armor

Wavelength	850 nm	953 nm	1300 nm
Max. Attenuation	3.0 dB/km	1.0 dB/km	1.0 dB/km
10 Gigabit Ethernet Performance	550 m	1100 m	1100 m
Min. Effective Modal Bandwidth (EMB)	4700 MHz.km	2470 MHz.km	--
Min. Overfilled Launch (OFL) Bandwidth	3500 MHz.km	1850 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	20x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	660 N (150 lbf)
Max. Tensile Strength During Operation	200 N (45 lbf)
Crush Resistance	440 N/cm
Bulk Cable Weight	118 lbs/1000ft (176 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	OFCP, UL 910, FT6
NEC / UL Compliance	OFCP
CEC / C(UL) Compliance	OFCP.
ICEA Compliance	S-83-596
TIA/EIA Compliance	ANSI/ICEA S-83-596
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
