FI4M012P2

Product Number: FI4M012P2

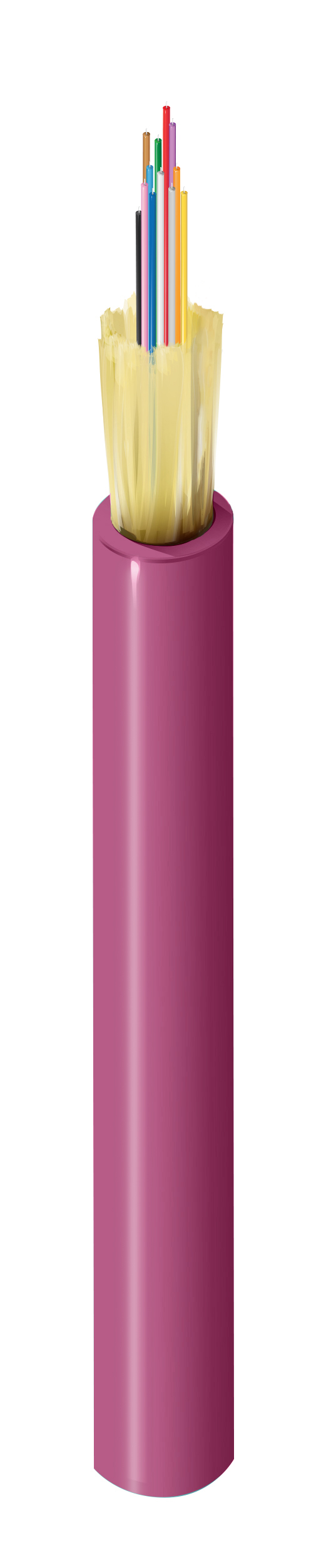

Indoor Plenum OM4 Mini-Distribution 12 Fibers

FX Indoor OM4 Mini Distribution 12 Fibers OFNP 3.0 mm Erika Violet Jacket

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

FI4M012P2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeUPCOrder
FI4M012P2Erika VioletReel612825288596Order online

Specifications

Product Overview

Suitable ApplicationsIndoor, data center, patching, inside cabinets, workstation equipment connections

Fiber Specifications

Fiber TypeOM4
Fiber Core Diameter50/125 μm
Fiber Diameter250 μm
Fiber Count12
Fiber Color CodingTIA-598-D

Outer Jacket Specifications

Jacket MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.118 in (3.0 mm)
Outer Jacket ColorErika Violet

Optical Characteristics

WavelengthMax. Attenuation
850 nm3.0 dB/km
1300 nm1.2 dB/km

Mechanical Characteristics

Minimum Bend Radius During Installation20 x Cable OD
Minimum Bend Radius During Operation10 x Cable OD
Max. Tensile Strength During Installation220 N (50 lbf)
Max. Tensile Strength During Operation75 N (17 lbf)
Crush Resistance35 N/cm
Bulk Cable Weight5.2 lbs/kft (7.81 kg/km)

Temperature Range

Installation Temperature Range0°C to +60°C
Operating Temperature Range0°C to +70°C
Storage Temperature Range-40°C to +70°C

Standards and Compliance

Environmental SuitabilityIndoor
SustainabilityCA Prop 65
NEC / UL ComplianceOFNP
CEC / C(UL) ComplianceFT6.
ICEA ComplianceS-83-596
Telcordia ComplianceGR-409

History

Update and RevisionRevision Number: 0.101 Revision Date: 02-20-2026
