Product Number: FI4M012P1

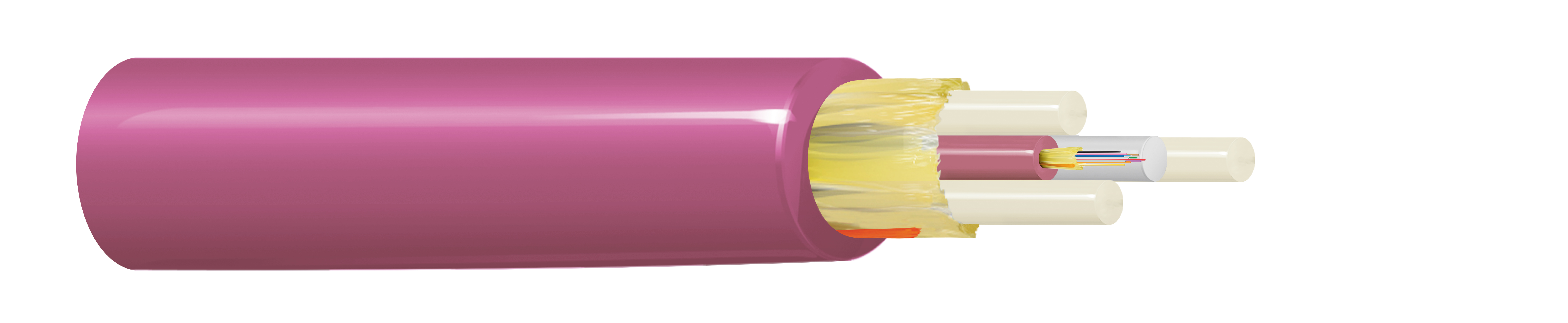

Indoor Mini-Distribution OM4 12 Fibers OFNP Sub-Units 2.0mm (12F)

Name: Belden FI4M012P1
Brand: Belden
SKU: FI4M012P1

FX Indoor, Mini-Distribution, OM4, 12 Fibers, OFNP, Subunits 2.0mm (12F), Erika Violet Jacket

Ships from and sold by A5 IT.

Part numbers

FI4M012P1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FI4M012P1	Erika Violet	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	1
Number of Fillers	3
Fibers Per Subunit	12
Subunit Diameter	0.078 in (2.0 mm)
Subunit Color	Erika Violet
Fiber SubUnit Strength Members	Aramid yarns
Central Strength Member Type	GRP

Wavelength	850 nm	1300 nm
Max. Attenuation	3.0 dB/km	1.0 dB/km
10 Gigabit Ethernet Performance	400 m	--
40 Gigabit Ethernet Performance	150 m	--
100 Gigabit Ethernet Performance	100 m	--
Min. Effective Modal Bandwidth (EMB)	4700 MHz.km	--
Min. Overfilled Launch (OFL) Bandwidth	3500 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	660 N (150lbf)
Max. Tensile Strength During Operation	200 N (45lbf)
Crush Resistance	100 N/cm
Bulk Cable Weight	30 lbs/kft (45 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-83-596
TIA/EIA Compliance	568.3, 598-D
Telcordia Compliance	GR-409
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
