Product Number: FI3M032P8

Indoor Mini Distribution OM3 32 Fibers OFNP Sub-Units 2.0mm (8F)

Name: Belden FI3M032P8
Brand: Belden
SKU: FI3M032P8

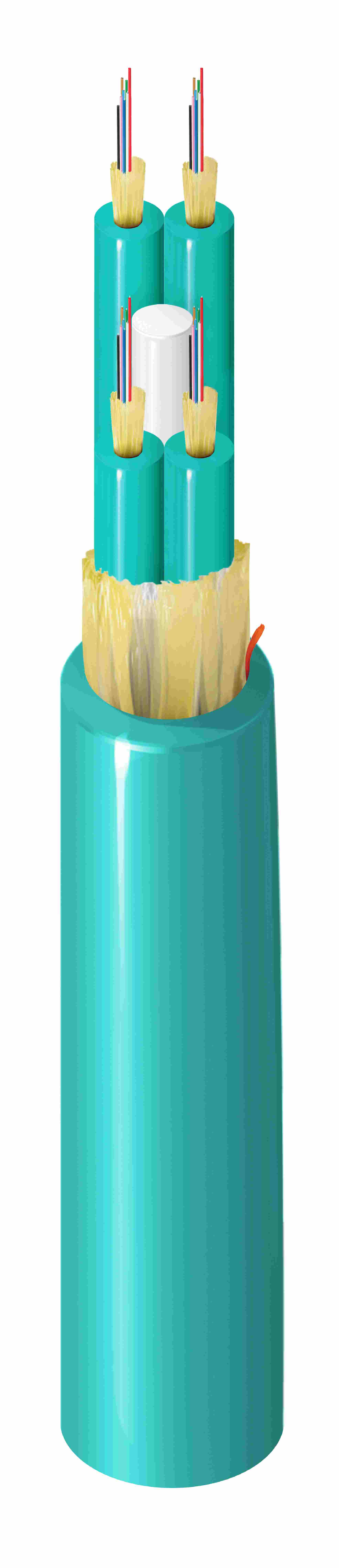

FX Indoor, Mini Distribution, OM3, 32 Fibers, OFNP, Sub-Units 2.0mm (8F), Aqua Jacket

Ships from and sold by A5 IT.

Part numbers

FI3M032P8 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FI3M032P8	Aqua	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	4
Fibers Per Subunit	8
Subunit Diameter	0.078 in (2.0mm)
Subunit Color	Aqua
Fiber SubUnit Strength Members	Aramid Yarns
Central Strength Member Type	GRP

Wavelength	850 nm	1300 nm
Max. Attenuation	3.0 dB/km	1.0 dB/km
10 Gigabit Ethernet Performance	400 m	--
40 Gigabit Ethernet Performance	100 m	--
100 Gigabit Ethernet Performance	70 m	--
Min. Overfilled Launch (OFL) Bandwidth	1500 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	660 N (150 lbf)
Max. Tensile Strength During Operation	200 N (45 lbf)
Crush Resistance	100 N/cm
Bulk Cable Weight	31 lbs/kft (46 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-83-596
TIA/EIA Compliance	568.3,598-D
Telcordia Compliance	GR-409
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
