Product Number: FI1M008P8

Indoor Mini Distribution OM1 8 Fibers OFNP Sub-Units 2.0mm (8F)

Name: Belden FI1M008P8
Brand: Belden
SKU: FI1M008P8

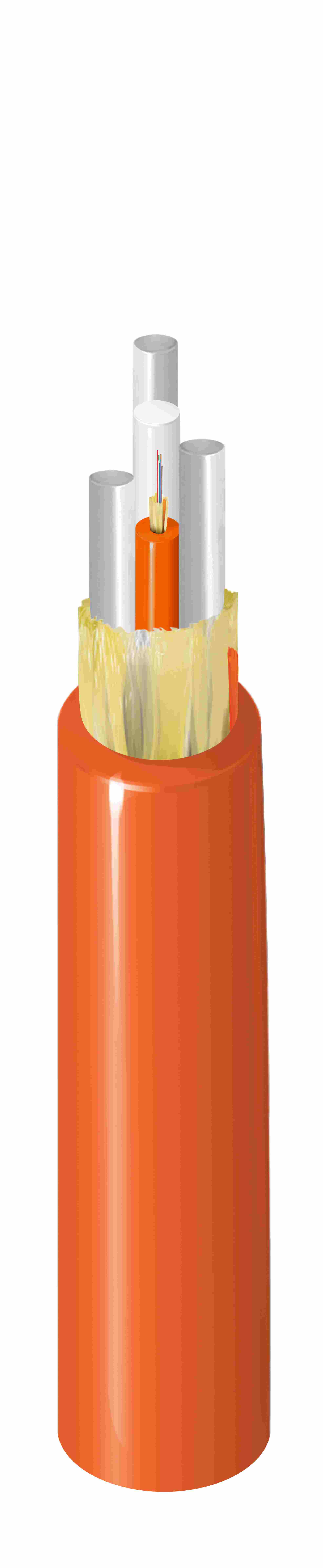

FX Indoor, Mini Distribution, OM1, 8 Fibers, OFNP Sub-Units 2.0mm (8F), Orange Jacket

Ships from and sold by A5 IT.

Part numbers

FI1M008P8 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FI1M008P8	Orange	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	1
Number of Fillers	3
Fibers Per Subunit	8
Subunit Diameter	0.078 in (2.0 mm)
Subunit Color	Orange
Fiber SubUnit Strength Members	Aramid yarns
Central Strength Member Type	GRP

Wavelength	850 nm	1300 nm
Max. Attenuation	3.5 dB/km	1.25 dB/km
10 Gigabit Ethernet Performance	33 m	--
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	660 N (150 lbf)
Max. Tensile Strength During Operation	200 N (45 lbf)
Crush Resistance	100 N/cm
Bulk Cable Weight	30 lbs/kft (45 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-83-596
TIA/EIA Compliance	598-D, 598-D
Telcordia Compliance	GR-409
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
