Product Number: FDSM144P2Y

Indoor/Outdoor Mini-Distribution OS2 144 Fibers OFNP Sub-Units 3.0 mm (12F)

Name: Belden FDSM144P2Y
Brand: Belden
SKU: FDSM144P2Y

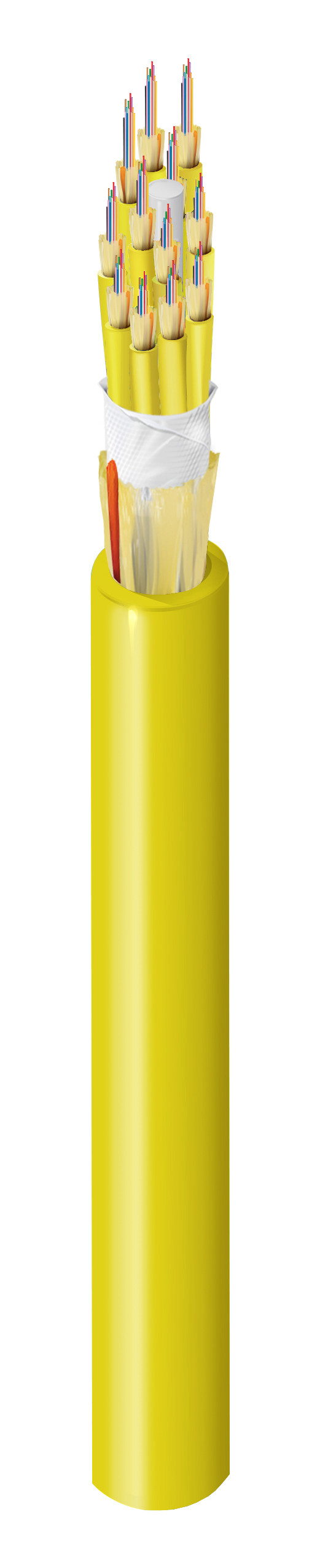

FX Indoor/Outdoor, Mini-Distribution, OS2, 144 Fibers, OFNP, Sub-Units 3.0 mm (12F), Yellow Jacket

Ships from and sold by A5 IT.

Part numbers

FDSM144P2Y is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FDSM144P2Y	Yellow	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	12
Fibers Per Subunit	12
Subunit Diameter	0.118 in (3.0 mm)
Subunit Color	Yellow
Fiber SubUnit Strength Members	Aramid Yarns
Central Strength Member Type	GRP
Core Wrap Material	Water block Tape

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.5 dB/km	0.5 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m
40 Gigabit Ethernet Performance	10,000 m	--
100 Gigabit Ethernet Performance	10,000 m	--

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1800 N (405 lbf)
Max. Tensile Strength During Operation	540 N (120 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	208 lbs/kft (310 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	-20°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-104-696
TIA/EIA Compliance	568.3, 598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
