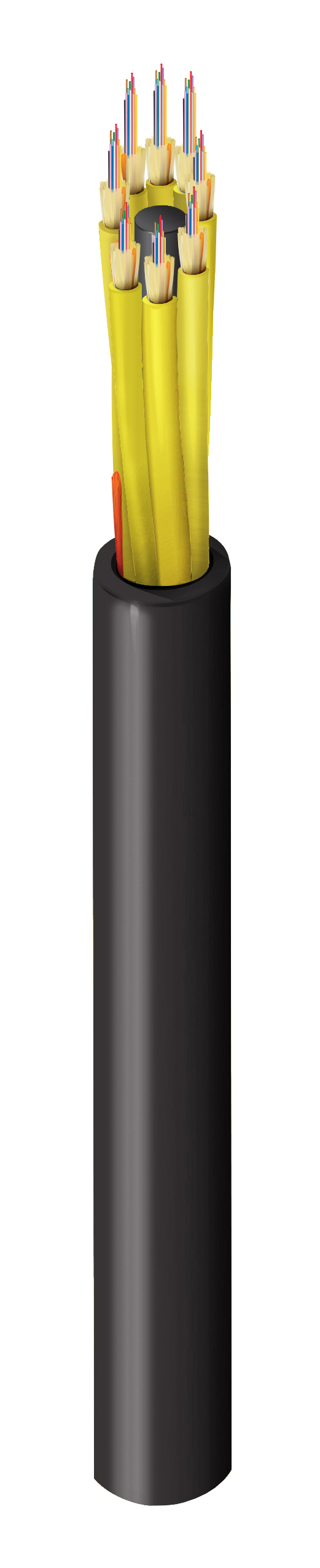

Product Number: FDSM096P2

Indoor/Outdoor Mini-Distribution OS2 96 Fibers OFNP Sub-units 3.0 mm (12F)

Name: Belden FDSM096P2
Brand: Belden
SKU: FDSM096P2

FX Indoor/Outdoor, Mini-Distribution, OS2, 96 Fibers, OFNP, Sub-Units 3.0 mm (12F), Black Jacket

Ships from and sold by A5 IT.

Specifications

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	8
Fibers Per Subunit	12
Subunit Diameter	0.118 in (3.0 mm)
Subunit Color	Yellow
Fiber SubUnit Strength Members	Waterblocking Aramid Yarns
Central Strength Member Type	Upjacketed GRP
Core Wrap Material	Waterblock Tape

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.5 dB/km	0.5 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1800 N (405 lbf)
Max. Tensile Strength During Operation	540 N (120 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	107 lbs/kft (159 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	-20°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	NFPA 262, FT6
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	OFNP.
ICEA Compliance	S-104-696
TIA/EIA Compliance	598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
