Product Number: FDSM024A2

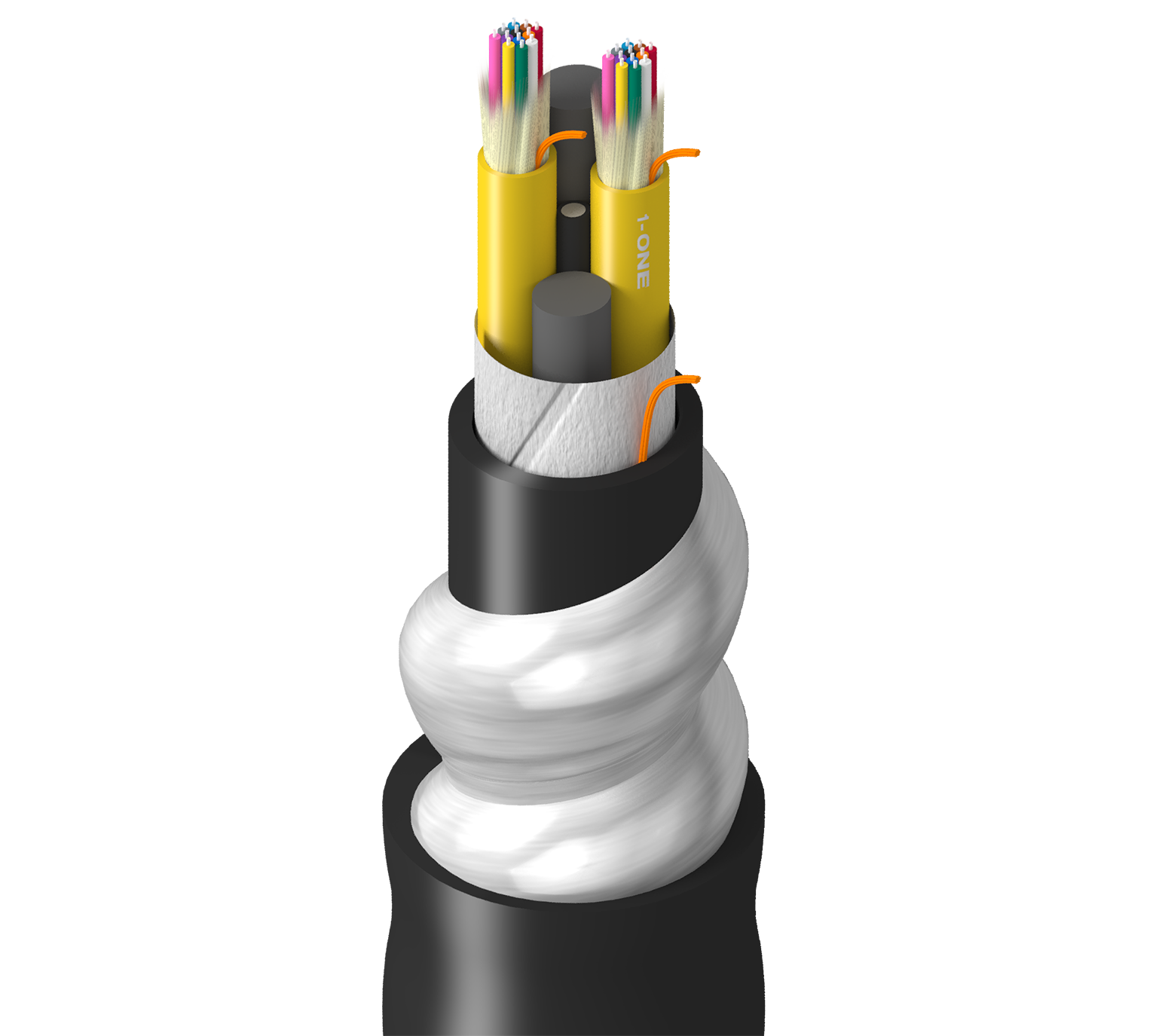

Indoor/Outdoor Plenum OS2 Mini-Distribution 24 Fibers Aluminium Interlocked 3mm SubUnit

Name: Belden FDSM024A2
Brand: Belden
SKU: FDSM024A2

FX Indoor/Outdoor, OS2, Mini-Distribution, 24 Fibers, OFCP, Aluminum Interlocked Armor, 12F/Sub-Unit (3.0mm), Black Jacket

Ships from and sold by A5 IT.

Specifications

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	2
Number of Fillers	2
Fibers Per Subunit	12
Subunit Diameter	0.118 in (3.0 mm)
Subunit Color	Yellow
Fiber SubUnit Strength Members	Waterblocking Aramid Yarns
Central Strength Member Type	GRP
Cable Core Water Blocking	Waterblock Tape

Material	Thermoplastic
Nominal Diameter@InnerJacket1 (cnv)	0.421 in ( 10.7 mm)
Color	Black

Armor Type and Material	AIA - Aluminum Interlock Armor

Minimum Bend Radius During Installation	20x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1800 N (405 lbf)
Max. Tensile Strength During Operation	540 N (121 lbf)
Crush Resistance	440 N/cm

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	-20°C to +70°C
Storage Temperature Range	-20°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, UV Resistance
Flammability / Reaction to Fire	OFCP, FT6
NEC / UL Compliance	OFCP
CEC / C(UL) Compliance	OFCP.
ICEA Compliance	S-104-696
TIA/EIA Compliance	ANSI/ICEA S-104-696
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
