Product Number: FDSM012P2

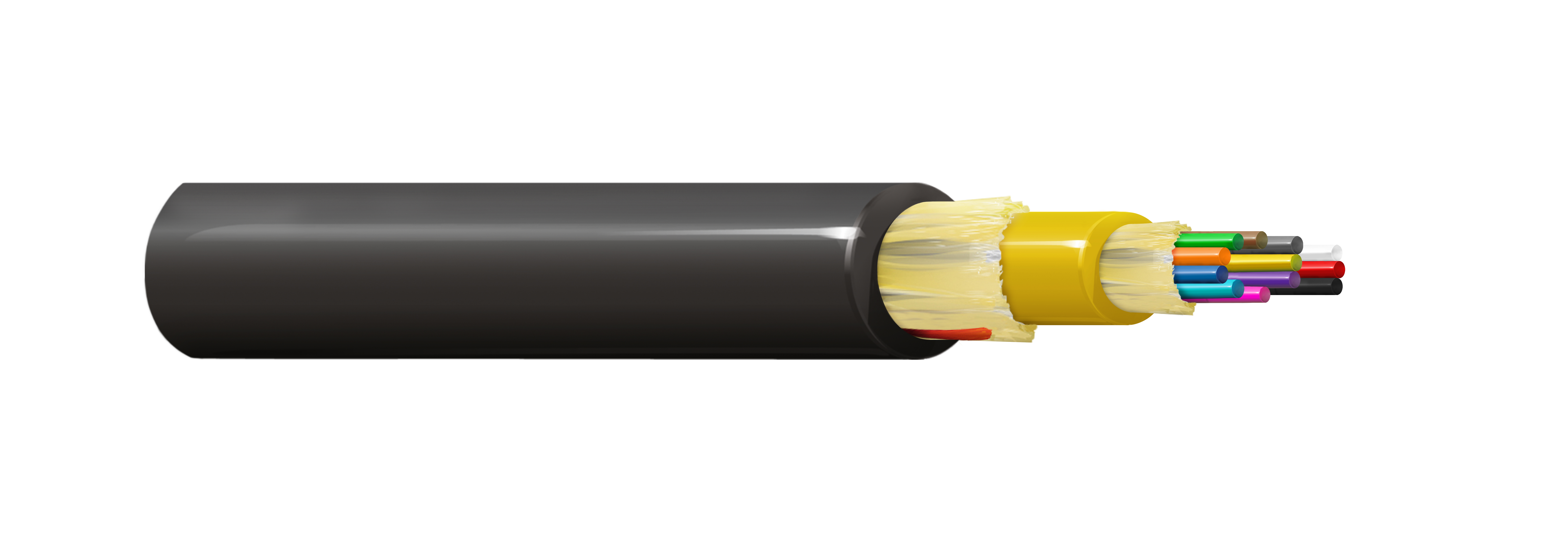

Indoor/Outdoor Plenum OS2 Mini-Distribution 12 Fibers 3mm SubUnit

Name: Belden FDSM012P2
Brand: Belden
SKU: FDSM012P2

FX Indoor/Outdoor, OS2, Mini-Distribution, 12 Fibers, OFNP, 12F/Sub-Unit (3.00mm), Black Jacket

Ships from and sold by A5 IT.

Part numbers

FDSM012P2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Inner Jacket Strength Member	Aramid Yarns
Material	PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1 (cnv)	0.130 in (3.3 mm)
Color	Yellow
Number of Inner Jacket Ripcords	1

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1320 N (300 lbf)
Max. Tensile Strength During Operation	400 N (90 lbf)
Crush Resistance	110 N/cm
Bulk Cable Weight	33 lbs/kft (49 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	-20°C to +70°C
Storage Temperature Range	-20°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, UV Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	OFNP, UL 910, FT6
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	OFNP.
ICEA Compliance	S-104-696
TIA/EIA Compliance	ANSI/ICEA S-104-696
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
