Product Number: FDSM012P0

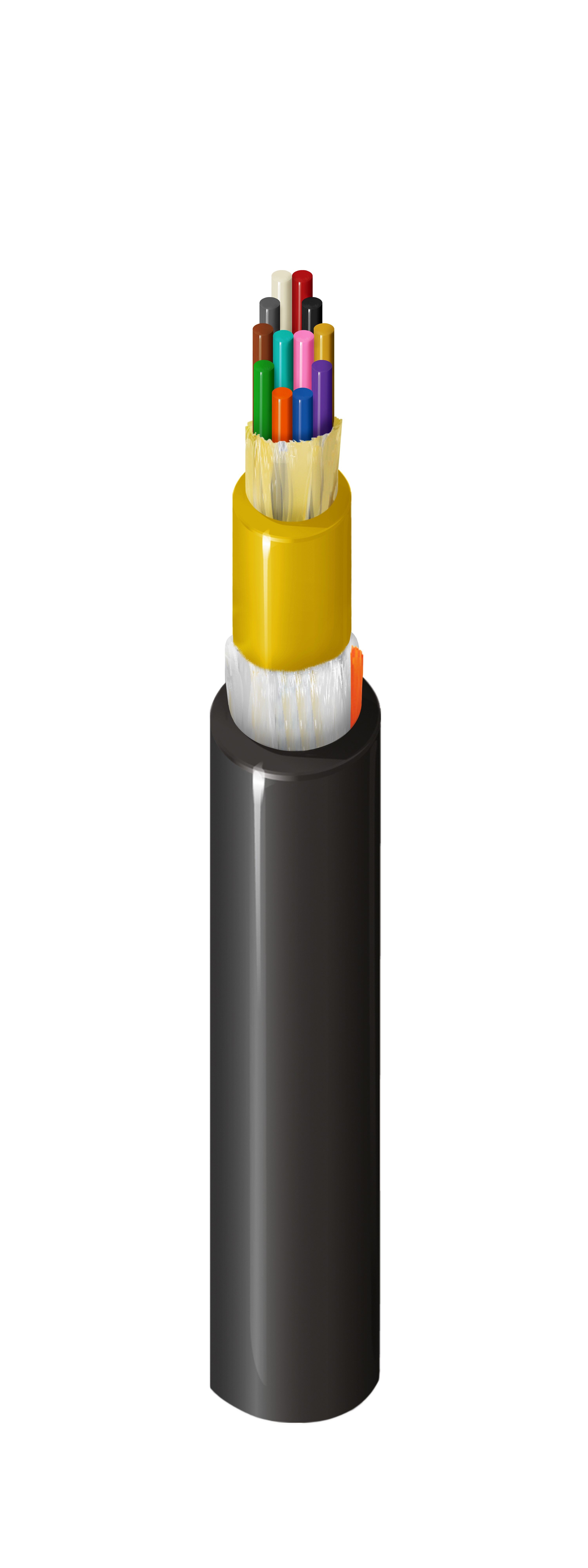

Indoor/Outdoor Mini-Distribution OS2 12 Fibers OFNP Double Jacket 6.7mm

Name: Belden FDSM012P0
Brand: Belden
SKU: FDSM012P0

FX Indoor/Outdoor, Mini-Distribution, OS2, 12 Fibers, OFNP, Double Jacket 6.7mm, Black Jacket

Ships from and sold by A5 IT.

Part numbers

FDSM012P0 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FDSM012P0	Black	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Inner Jacket Strength Member	Aramid Yarns
Material	PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1 (cnv)	0.130 in (3.3 mm)
Color	Yellow

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.5 dB/km	0.5 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m
40 Gigabit Ethernet Performance	10,000 m	--
100 Gigabit Ethernet Performance	10,000 m	--

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1320 N (300 lbf)
Max. Tensile Strength During Operation	400 N (90 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	43 lbs/kft (64 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	-20°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-104-696
TIA/EIA Compliance	568.3, 598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
