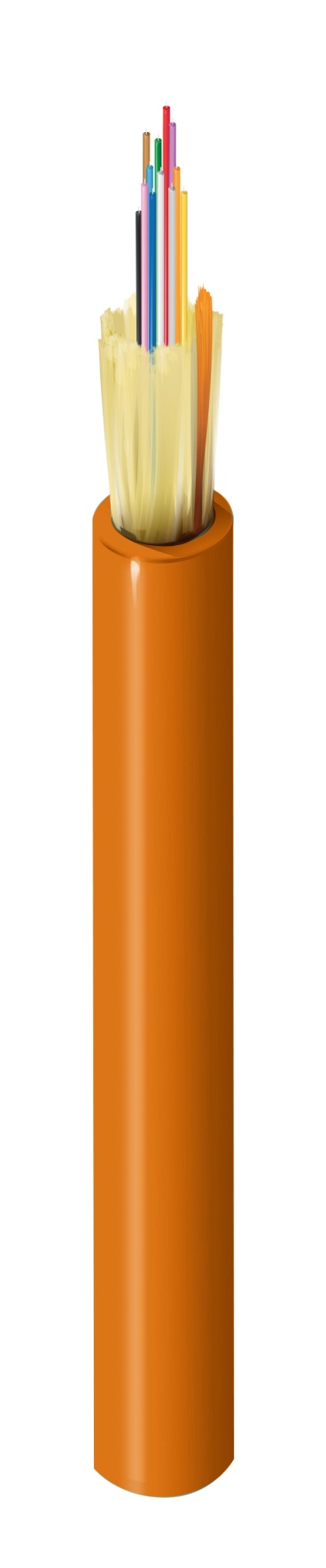

Product Number: FD4M006P2

Indoor/Outdoor Plenum, OM4, 6 Fibers, Plenum

Name: Belden FD4M006P2
Brand: Belden
SKU: FD4M006P2

Indoor/Outdoor, OM4, Mini-Distribution, 6 Fibers, Plenum, 3.0mm, 16 x 250um Fiber

Ships from and sold by A5 IT.

Part numbers

FD4M006P2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
FD4M006P2	Black	612825394129	Order online

Product Category	Composite
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Number of Active Subunits	1
Fibers Per Subunit	6
Subunit Diameter	0.118 in (3.0 mm)
Fiber SubUnit Strength Members	Waterblocking aramid yarns
Central Strength Member Type	GRP
Cable Core Water Blocking	Waterblocking Aramid Yarns

Wavelength	850 nm	1300 nm
Max. Attenuation	3.0 dB/km	1.2 dB/km
1 Gigabit Ethernet Performance	1,040 m	550 m
10 Gigabit Ethernet Performance	550 m	--
Min. Effective Modal Bandwidth (EMB)	4700 MHz.km	--
Min. Overfilled Launch (OFL) Bandwidth	3500 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	670 N (150 lbf)
Max. Tensile Strength During Operation	200 N (45 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	33 lbs/kft (49 kg/km)

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	OFNP, FT6
ICEA Compliance	S-104-696
TIA/EIA Compliance	ANSI/ICEA S-104-696
