Product Number: FD4M006P03

Indoor/Outdoor Mini-Distribution OM4 6 Fibers OFNP Double Jacket 6.7mm

Name: Belden FD4M006P03
Brand: Belden
SKU: FD4M006P03

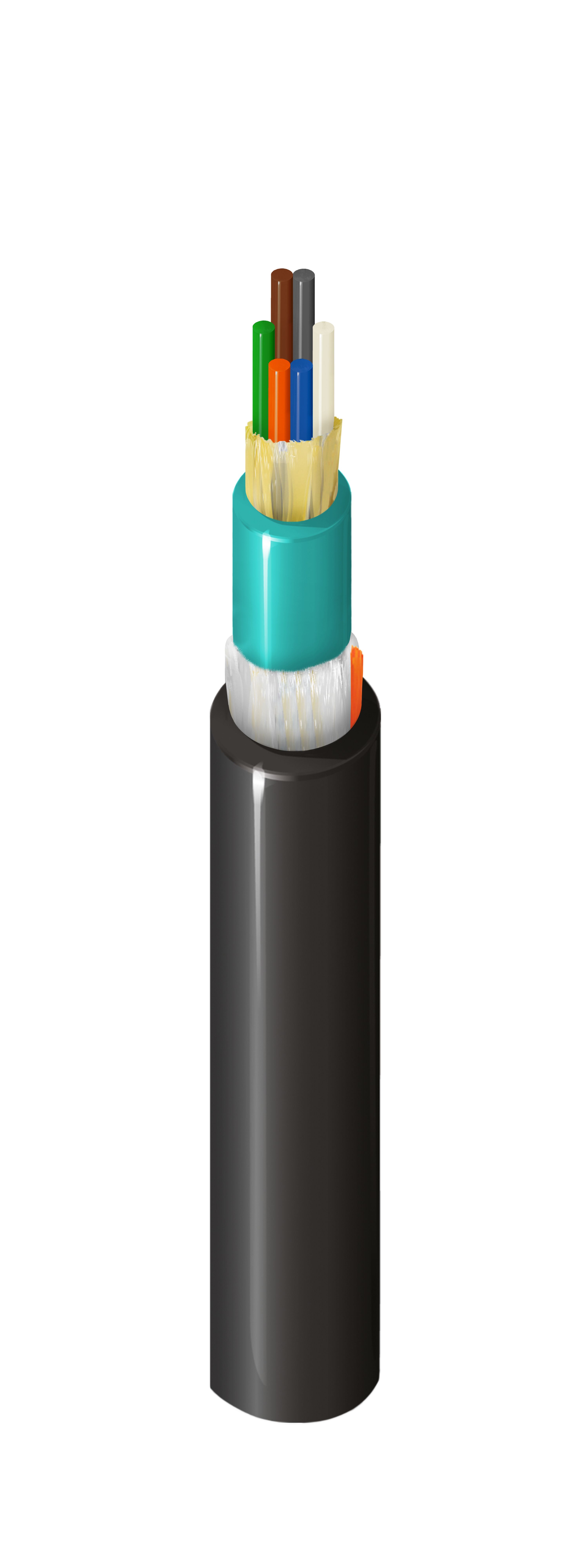

FX Indoor/Outdoor, Mini-Distribution, OM4, 6 Fibers, OFNP, Double Jacket 6.7mm, Black Jacket/ Aqua Sub-units

Ships from and sold by A5 IT.

Part numbers

FD4M006P03 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FD4M006P03	Black	Reel	Order online

Product Category	Fiber Mini Distribution Cable
Suitable Applications	Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Inner Jacket Strength Member	Aramid Yarns
Material	PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1 (cnv)	0.130 in (3.3 mm)
Color	Aqua

Wavelength	850 nm	1300 nm
Max. Attenuation	3.0 dB/km	1.0 dB/km
10 Gigabit Ethernet Performance	400 m	--
40 Gigabit Ethernet Performance	150 m	--
100 Gigabit Ethernet Performance	100 m	--
Min. Effective Modal Bandwidth (EMB)	4700 MHz.km
Min. Overfilled Launch (OFL) Bandwidth	3500 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	660 N (150 lbf)
Max. Tensile Strength During Operation	200 N (45 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	43 lbs/kft (64 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	-20°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-104-696
TIA/EIA Compliance	568.3, 598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
