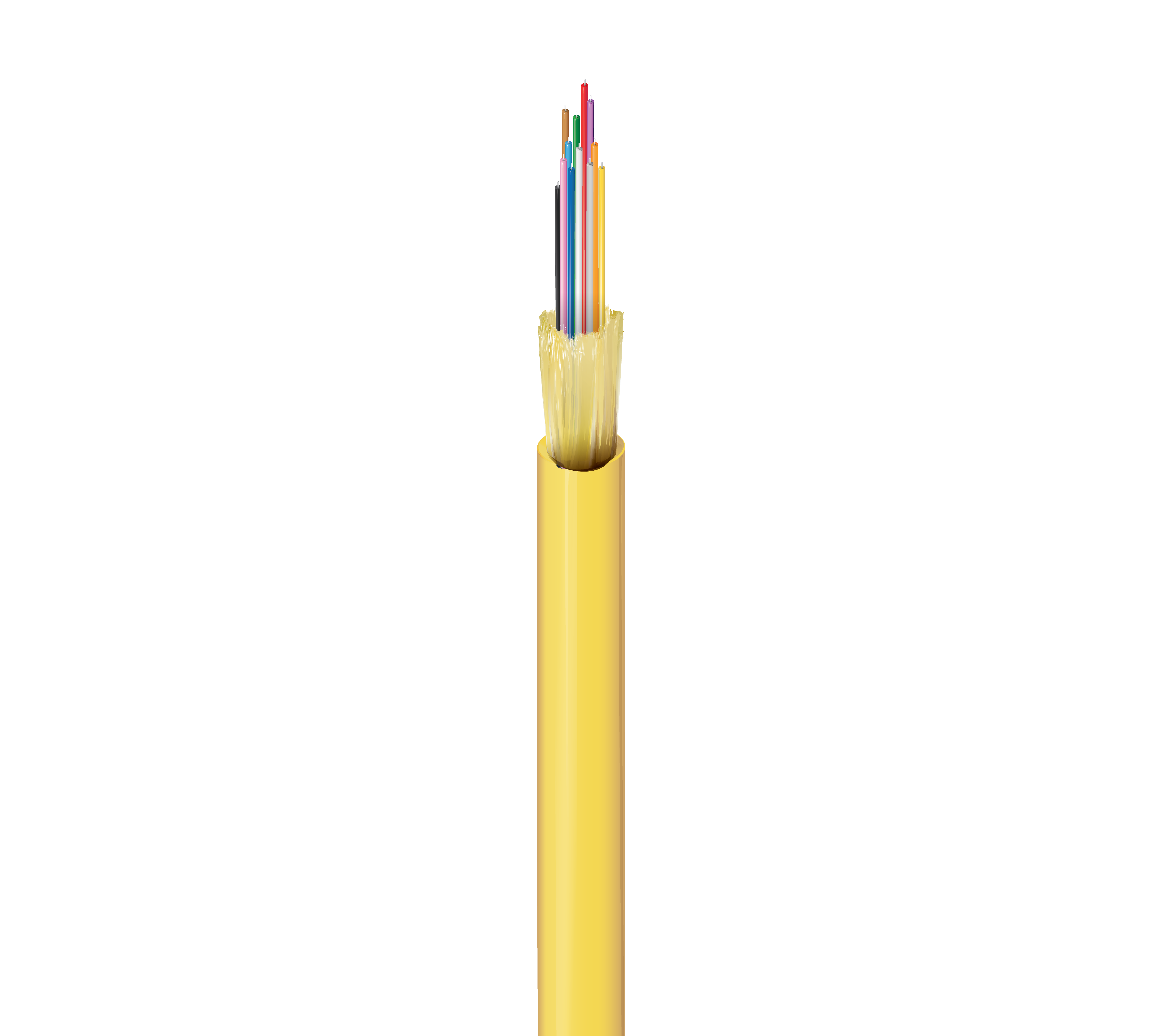

Indoor Interconnect OS2 12 Fibers OFNP Mini-Round 2.0mm (250μm)
FX Indoor, Interconnect, OS2, 12 Fibers, OFNP, Mini-Round 2.0mm (250μm), Yellow Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FISI012P0 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FISI002RC | Yellow | Reel | 612825286943 | Order online |
Specifications
Product Overview
| Product Category | Fiber Interconnect Cable |
|---|---|
| Suitable Applications | Short-distance indoor applications such as patching, inside cabinets, workstation equipment connections. |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Count | 12 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.078 in ( 2.0 mm) |
| Outer Jacket Color | Yellow |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 220 N (50 lbf) |
| Max. Tensile Strength During Operation | 67 N (15 lbf) |
| Crush Resistance | 35 N/cm |
| Bulk Cable Weight | 2 lbs/1000ft (3 kg/km) |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | NFPA 262, FT6 |
| NEC / UL Compliance | OFNP |
| CEC / C(UL) Compliance | OFNP. |
| ICEA Compliance | S-83-596 |
| TIA/EIA Compliance | 598-D |
| Telcordia Compliance | GR-409 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.92 Revision Date: 02-20-2026 |
|---|
