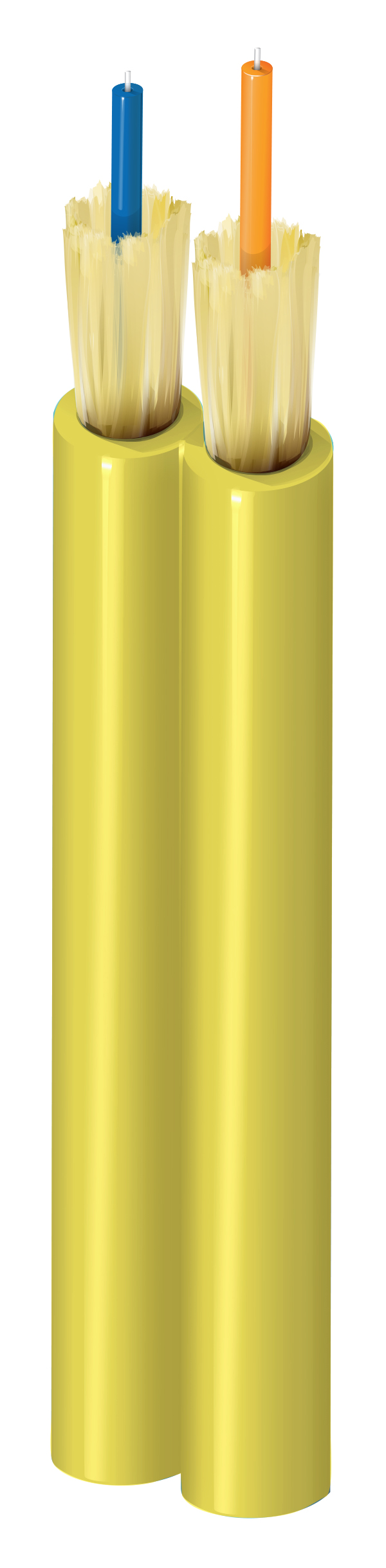

Indoor Interconnect OS2 2 Fibers OFNP DX Cord 3.0mm (900μm)
FX Indoor, Interconnect, OS2, 2 Fibers, OFNP, DX Cord 3.0mm (900μm) Yellow Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
FISI002PC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FISI002PC | Yellow | Reel | 612825286929 | Order online |
| FISI002PB | Yellow | Reel | 612825286912 | Order online |
Specifications
Product Overview
| Product Category | Fiber Interconnect Cable |
|---|---|
| Suitable Applications | Short-distance indoor applications such as patching, inside cabinets, workstation equipment connections. |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 2 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.114 in x 0.233 in |
| Outer Jacket Color | Yellow |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 220 N (50 lbf) |
| Max. Tensile Strength During Operation | 67 N (15 lbf) |
| Crush Resistance | 35 N/cm |
| Bulk Cable Weight | 10 lbs/kft (15 kg/km) |
Temperature Range
| Installation Temperature Range | 0oC to +60oC |
|---|---|
| Operating Temperature Range | -20oC to +70oC |
| Storage Temperature Range | -40oC to +70oC |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262, FT6 |
| NEC / UL Compliance | OFNP |
| CEC / C(UL) Compliance | OFNP. |
| ICEA Compliance | S-83-596 |
| TIA/EIA Compliance | 598-D |
| Telcordia Compliance | GR-409 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.76 Revision Date: 02-20-2026 |
|---|
