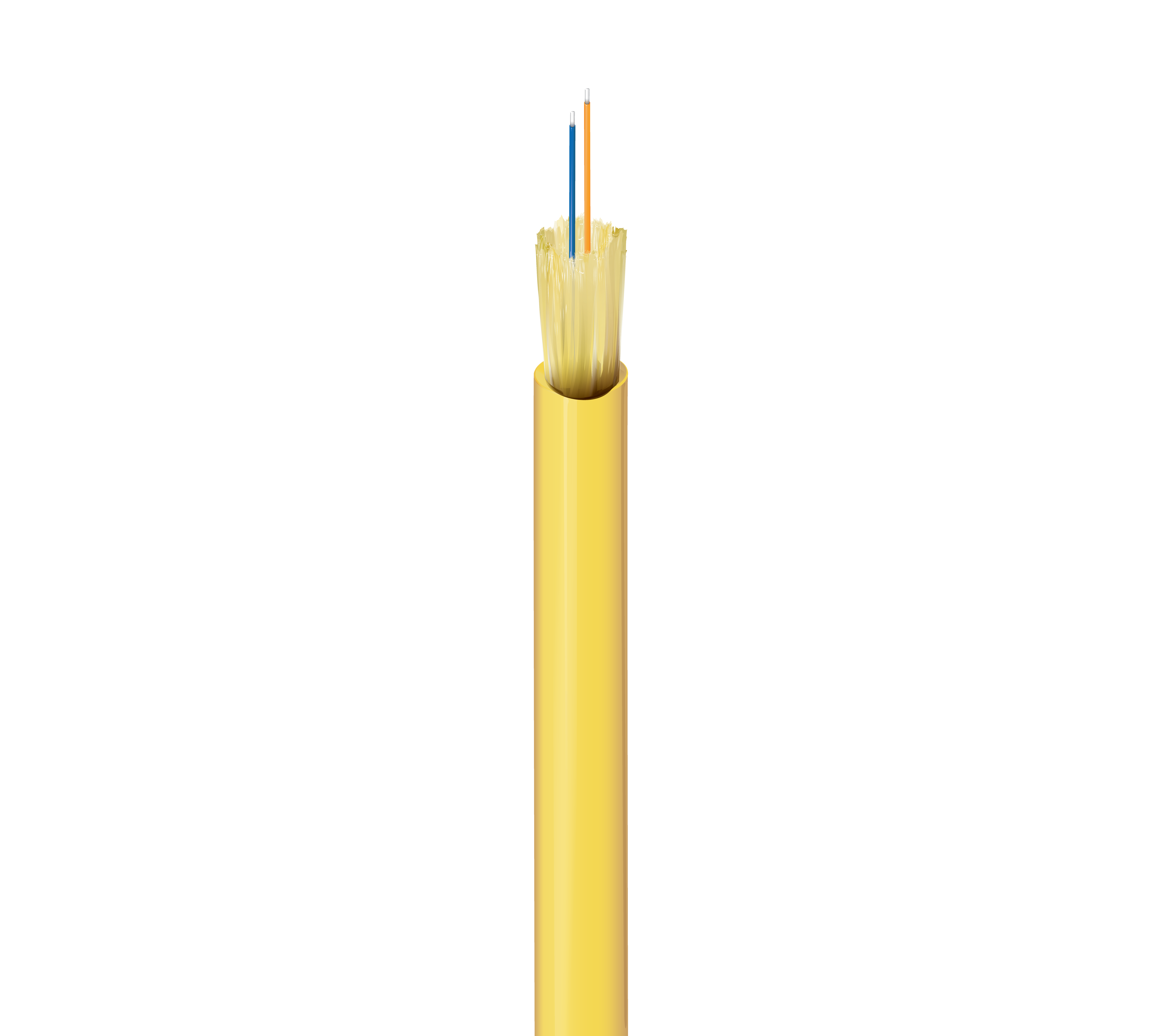

Indoor Plenum OS2 Interconnect 2F DX DX MiniRound 2mm
FX Indoor OS2 Interconnect 2 Fibers OFNP DX DX Mini-Round 2.0MM (250UM) Yellow Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Indoor |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125μm μm |
| Fiber Buffer Material | PVC |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 2 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.078 in (2.0 mm) |
| Outer Jacket Color | Yellow |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5000 m | - |
| 10 Gigabit Ethernet Performance | 10000 m | 50000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 222 N (50 lbf) |
| Max. Tensile Strength During Operation | 67 N (15 lbf) |
| Crush Resistance | 35 N/cm |
| Bulk Cable Weight | 2.3 lbs/1000ft |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | OFNP, FT6 |
| NEC / UL Compliance | OFNP |
| CEC / C(UL) Compliance | FT6. |
| ICEA Compliance | S-83-596 |
| TIA/EIA Compliance | ANSI/ICEA S-83-596 |
History
| Update and Revision | Revision Number: 0.84 Revision Date: 02-20-2026 |
|---|
