Product Number: FIBI016P5

Indoor Interconnect OS2 A2-B2 16 Fibers OFNP Mini-Round 2.0mm (200μm)

Name: Belden FIBI016P5
Brand: Belden
SKU: FIBI016P5

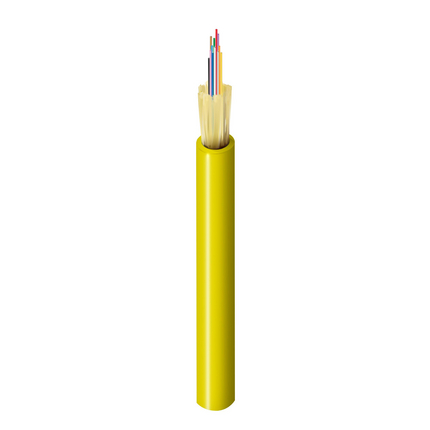

FX Indoor, Interconnect, OS2 A2-B2, 16 Fibers, OFNP, Mini-Round 2.0mm (200μm), Yellow Jacket

Ships from and sold by A5 IT.

Part numbers

FIBI016P5 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FIBI016P5	Yellow	Reel	Order online

Product Category	Fiber Interconnect Cable
Suitable Applications	Short-distance indoor applications such as patching, inside cabinets, workstation equipment connections.

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.40 dB/km	0.30 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m
40 Gigabit Ethernet Performance	10,000 m	--
100 Gigabit Ethernet Performance	10,000 m	--

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	50 lbf (220 N)
Max. Tensile Strength During Operation	15 lbf (67 N)
Crush Resistance	35 N/cm
Bulk Cable Weight	3 lbs/kft (4 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	OFNP
CEC / C(UL) Compliance	FT6.
ICEA Compliance	S-83-596
TIA/EIA Compliance	568.3, 598-D
Telcordia Compliance	GR-409
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
