Indoor LSZH/Riser OM4 Interconnect 2F DX DX MiniRound 2mm

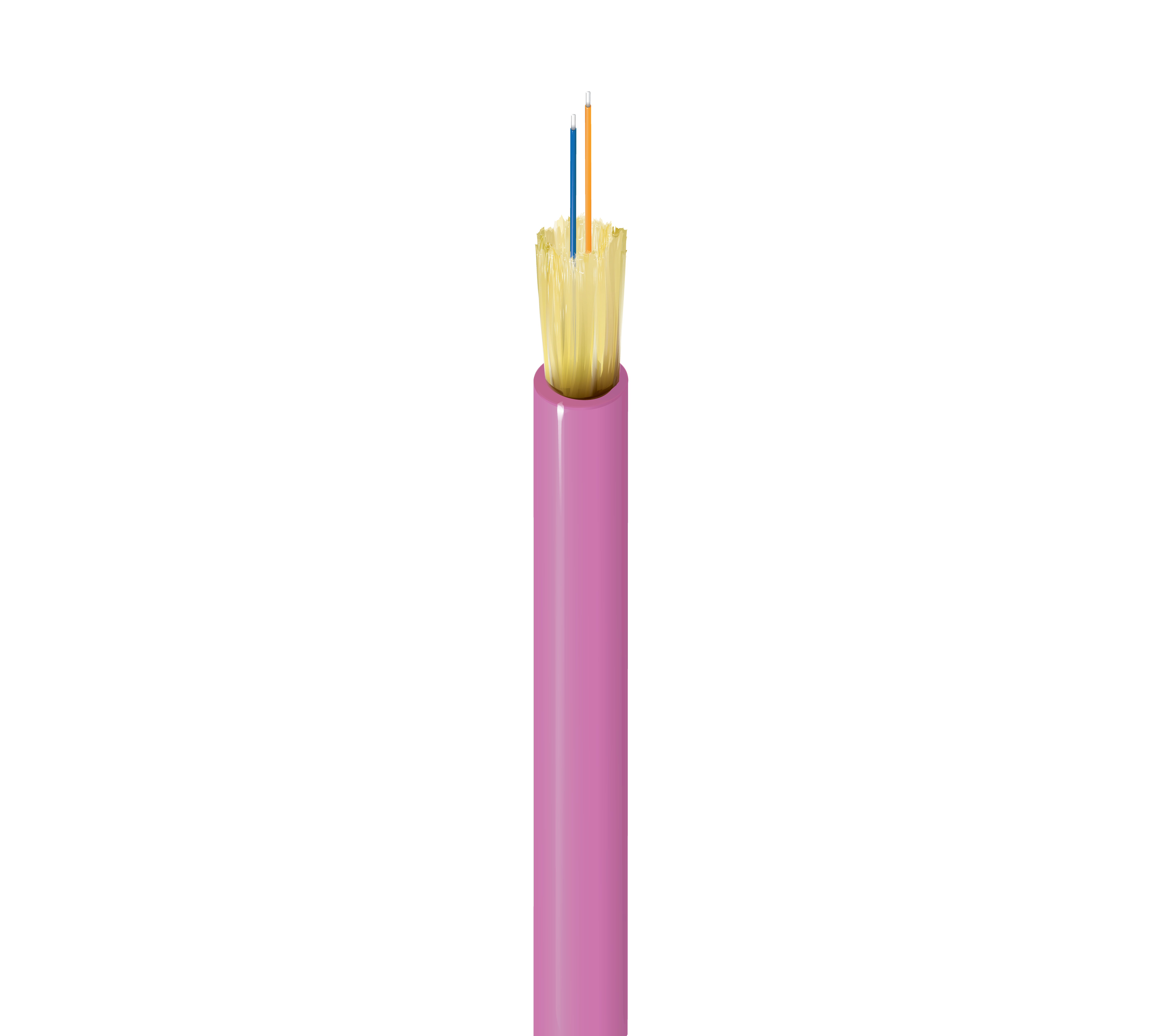

FX Indoor OM4 Interconnect 2 Fibers LSZH/OFNR DX DX Mini-Round 2.0MM (250UM) Erika Violet Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FI4I002L0 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| FI4I002L0 | Erika Violet | Reel | Order online |
Specifications
Product Overview
| Suitable Applications | Indoor |
|---|
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50/125μm |
| Fiber Buffer Material | LSZH |
| Fiber Count | 2 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 0.079 in |
| Outer Jacket Color | Erika Violet |
Optical Characteristics
| Wavelength | Max. Attenuation |
|---|---|
| 850 nm | 3.0 dB/km |
| 1300 nm | 1.2 dB/km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 50 lbf (220 N) |
| Max. Tensile Strength During Operation | 15 lbf (67 N) |
| Bulk Cable Weight | 2 lbs/1000ft (3.0 kg/km) |
Temperature Range
| Installation Temperature Range | -10C to +60C |
|---|---|
| Operating Temperature Range | 0C to +70C |
| Storage Temperature Range | -40C to +70C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| NEC / UL Compliance | OFNR |
| CEC / C(UL) Compliance | FT4. |
| TIA/EIA Compliance | ANSI/ICEA S-83-596 |
History
| Update and Revision | Revision Number: 0.81 Revision Date: 02-20-2026 |
|---|
