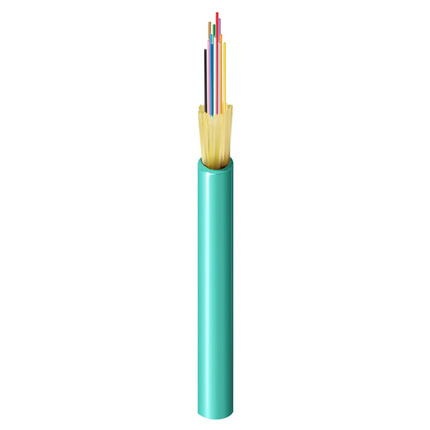

Indoor Interconnect OM3 12 Fibers LSZH/OFNR Mini-Round 3.0mm (250μm)
FX Indoor, Interconnect, OM3, 12 Fibers, LSZH/OFNR, Mini-Round 3.0mm (250μm), Aqua Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FI3I012L1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| FI3I012L1 | Aqua | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Interconnect Cable |
|---|---|
| Suitable Applications | Short-distance indoor applications such as patching, inside cabinets, workstation equipment connections |
Fiber Specifications
| Fiber Type | OM3 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 12 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter | 0.120 in (3.0 mm) |
| Outer Jacket Color | Aqua |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 10 Gigabit Ethernet Performance | 300 m | -- |
| 40 Gigabit Ethernet Performance | 100 m | -- |
| 100 Gigabit Ethernet Performance | 70 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 2000 MHz.km | |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 50 lbf (220 N) |
| Max. Tensile Strength During Operation | 15 lbf (67 N) |
| Crush Resistance | 35 N/cm |
| Bulk Cable Weight | 5.3 lbs/kft (7.9 kg/km) |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1666, UL 1685 |
| NEC / UL Compliance | OFNR-ST1 |
| CEC / C(UL) Compliance | FT4. |
| ICEA Compliance | S-83-596 |
| TIA/EIA Compliance | 568.3, 598-D |
| Telcordia Compliance | GR-409 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.9 Revision Date: 05-21-2026 |
|---|
