Product Number: FI1I012L1

Indoor Interconnect OM1 12 Fibers LSZH/OFNR Mini-Round 3.0mm (250μm)

Name: Belden FI1I012L1
Brand: Belden
SKU: FI1I012L1

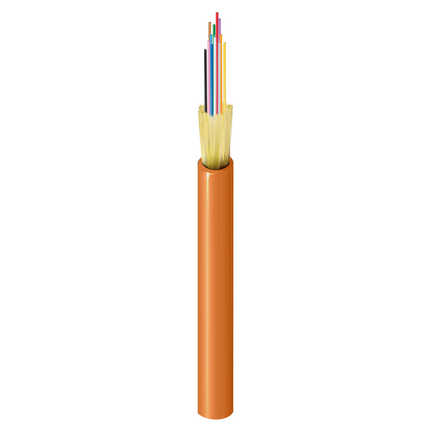

FX Indoor, Interconnect, OM1, 12 Fibers, LSZH/OFNR, Mini-Round 3.0mm (250μm), Orange Jacket

Ships from and sold by A5 IT.

Part numbers

FI1I012L1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
FI1I012L1	Orange	Reel	Order online

Product Category	Fiber Interconnect Cable
Suitable Applications	Short-distance indoor applications such as patching, inside cabinets, workstation equipment connections

Strength Member	Aramid Yarns
Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	0.120 in (3.0 mm)
Outer Jacket Color	Orange

Wavelength	850 nm	1300 nm
Max. Attenuation	3.5 dB/km	1.25 dB/km
10 Gigabit Ethernet Performance	33 m	--
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	50 lbf (220 N)
Max. Tensile Strength During Operation	15 lbf (67 N)
Crush Resistance	35 N/cm
Bulk Cable Weight	5.3 lbs/kft (7.9 kg/km)

Installation Temperature Range	0°C to +60°C
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL1666, UL 1685
NEC / UL Compliance	OFNR-ST1
CEC / C(UL) Compliance	FT4.
ICEA Compliance	S-83-596
TIA/EIA Compliance	568.3, 598-D
Telcordia Compliance	GR-409
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)
