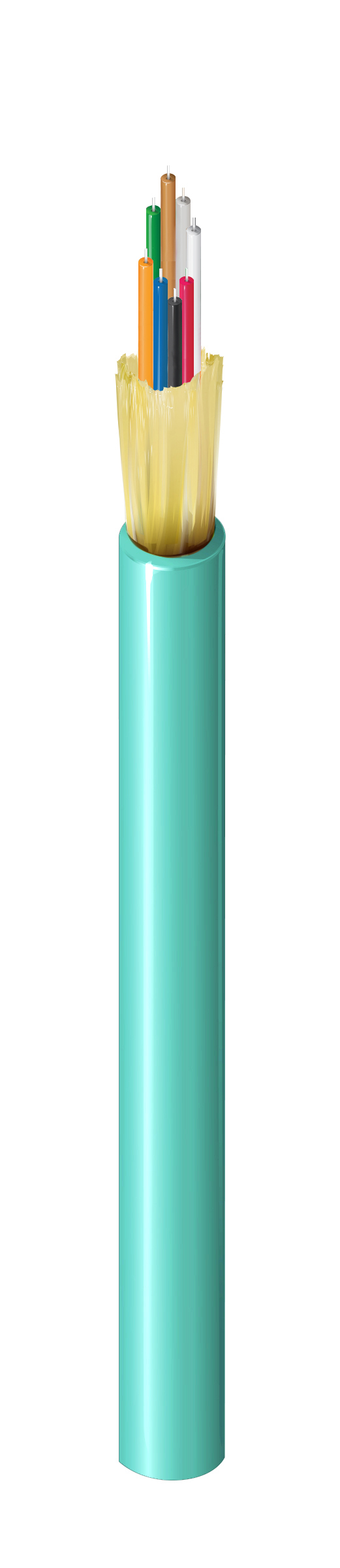

Indoor tight buffered distribution cable PVC Jacket 8F MM 50μm OM4, Riser & UL-1666
Indoor optical fiber distribution cable : 900μm PVC tight buffer, Aramid yarn reinforcing, flame retardant PVC jacket, 8 Fibers, MM 50μm OM4, Riser & UL-1666 rated
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | High degree of flexibility suitable for backbone, horizontal, inner-and inter-building installations; Excellent flame retardant performance for indoor application |
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50 μm |
| Fiber Diameter | 125 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Buffer Construction | Tight Buffer |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 8 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 5.6 mm (0.22 in) |
| Outer Jacket Color | Aqua |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| Min. Effective Modal Bandwidth (EMB) | 4700 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20 x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10 x Cable OD |
| Max. Tensile Strength During Installation | 660 N (150 lbf) |
| Max. Tensile Strength During Operation | 200 N (45 lbf) |
| Crush Resistance | Max Crush Resistance During Installation: 1000N/100mm, Max Crush Resistance During Operation: 300N/100mm |
| Bulk Cable Weight | 25.2 kg/km (16.9 lbs/1000ft) |
Mechanical Tests
| Description | Tested Standard |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | IEC 60794-1-21-E11 |
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 |
| Cable Max. Crush Resistance Installation (Short Term) | IEC 60794-1-21-E3 |
| Cable Max. Crush Resistance Operation (Long Term) | IEC 60794-1-21-E3 |
Temperature Range
| Operating Temperature Range | -20 °C to +60 °C |
|---|---|
| Storage Temperature Range | -20 °C to +60 °C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1666 |
| ISO/IEC Compliance | IEC 60793-1-1 IEC 60794-1-1 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
