Indoor Distribution Tight Buffer OM5 6 Fibers OFNP Non-Unitized

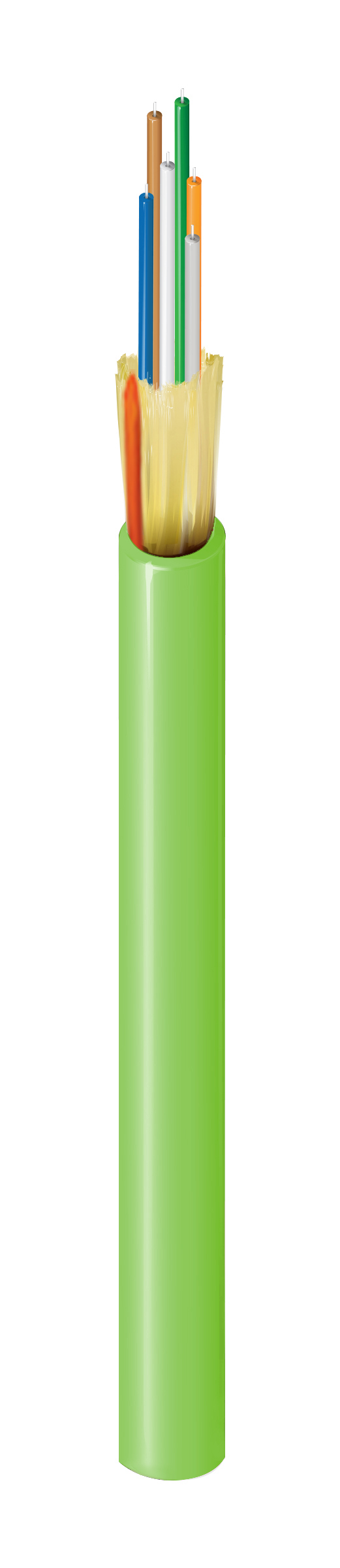

FX Indoor, Distribution Tight Buffer, OM5, 6 Fibers, OFNP, Non-Unitized, Lime Green Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FI5D006P9 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| FI5D006P9 | Lime Green | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
Fiber Specifications
| Fiber Type | OM5 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 6 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.195 in (5.0 mm) |
| Outer Jacket Color | Lime Green |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 10 Gigabit Ethernet Performance | 400 m | -- |
| 40 Gigabit Ethernet Performance | 150 m | -- |
| 100 Gigabit Ethernet Performance | 100 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 4700 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 660 N (150 lbf) |
| Max. Tensile Strength During Operation | 200 N (45 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 14 lbs/kft (21 kg/km) |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | NFPA 262 |
| NEC / UL Compliance | OFNP |
| CEC / C(UL) Compliance | FT6. |
| ICEA Compliance | S-83-596 |
| TIA/EIA Compliance | 568.3, 598-D |
| Telcordia Compliance | GR-409 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.12 Revision Date: 05-05-2026 |
|---|
