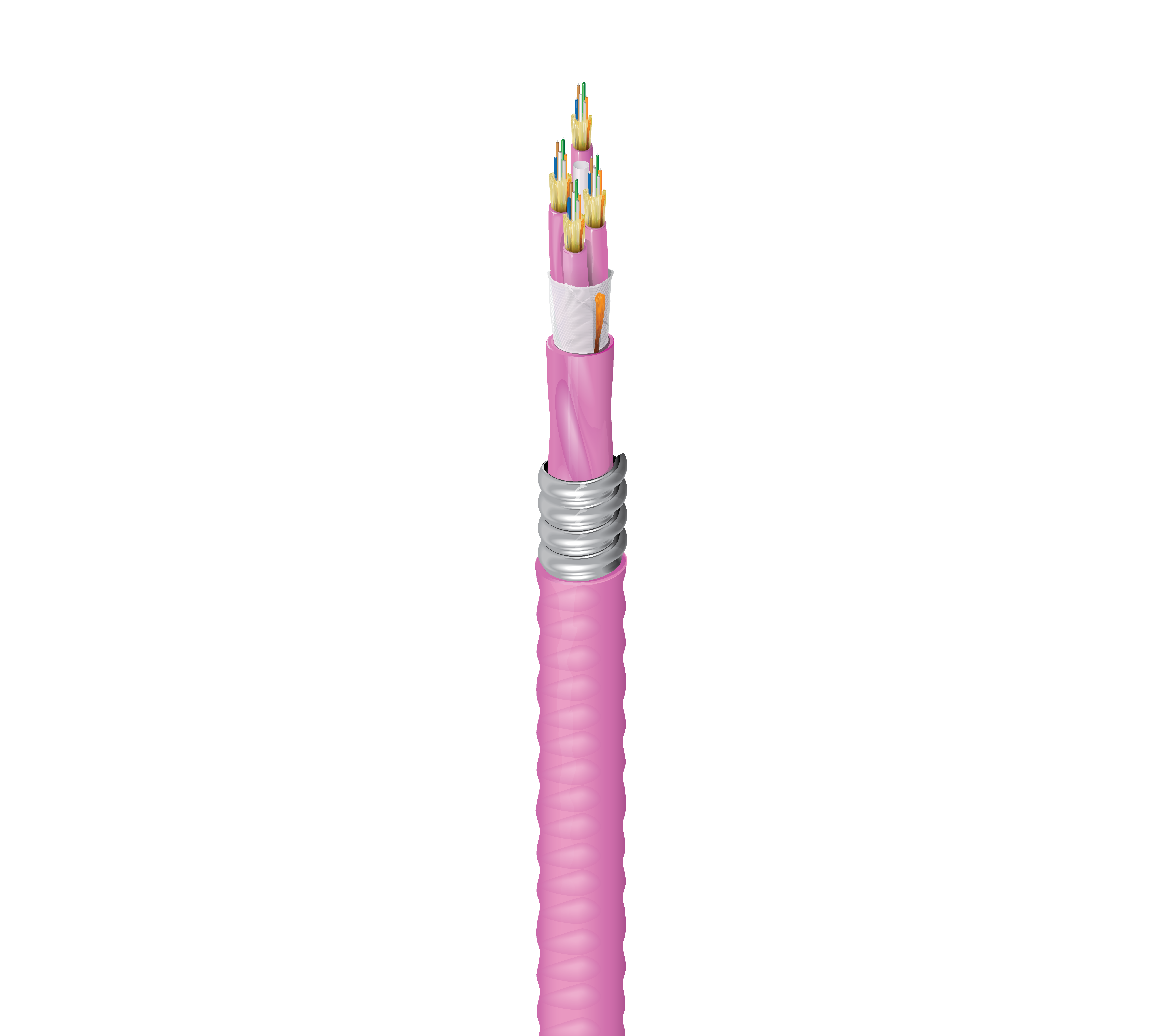

Indoor Plenum OM4 Distribution 48Fibers Aluminum Interlocked
FX Indoor OM4 Distribution Tight Buffer 48 Fibers OFCP Aluminum Interlocked Armor Sub-Units(12F) Erika Violet Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FI4D048AK is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FI4D048AK | Erika Violet | Reel | 612825378563 | Order online |
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 48 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 4 |
|---|---|
| Fibers Per Subunit | 12 |
| Subunit Diameter | 0.220 in (5.6 mm) |
| Subunit Color | Erika Violet |
| Fiber SubUnit Strength Members | Aramid yarns |
| Central Strength Member Type | Upjacketed GRP |
| Core Wrap Material | Nomex tape |
Inner Jacket Specifications
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter@InnerJacket1 (cnv) | 0.590 in (15.0 mm) |
| Color | Erika Violet |
| Number of Inner Jacket Ripcords | 1 |
Armor Specifications
| Armor Type and Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.936 in (23.8 mm) |
| Outer Jacket Color | Erika Violet |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1100 m | 550 m |
| 10 Gigabit Ethernet Performance | 550 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 4700 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 1320 N (300 lbf) |
| Max. Tensile Strength During Operation | 400 N (90 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 278 lbs/kft (414 kg/km) |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65, Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | OFCP, FT6 |
| ICEA Compliance | S-83-596 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
| Update and Revision | Revision Number: 0.96 Revision Date: 02-20-2026 |
|---|
