Indoor Riser OM2 Distribution 96Fibers Aluminum Interlocked

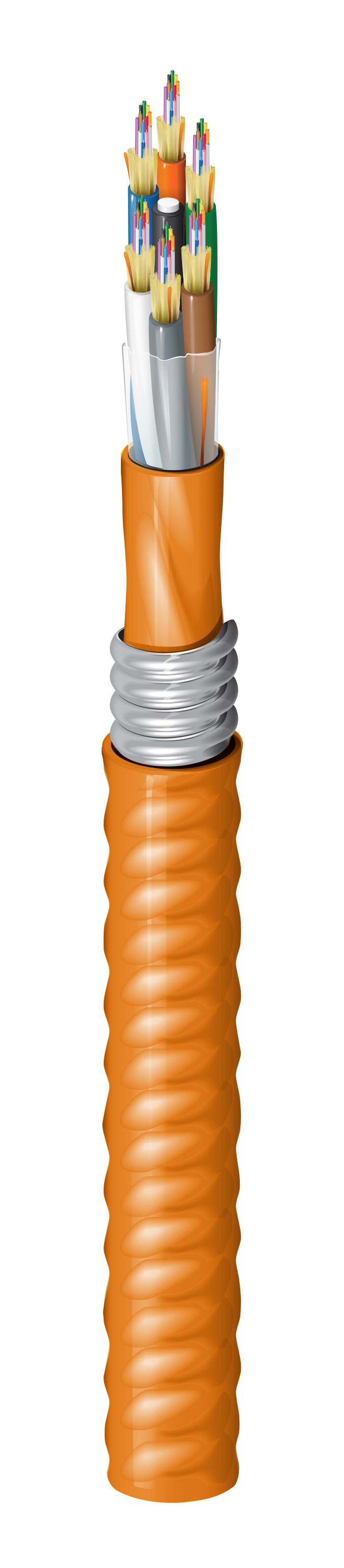

FX Indoor OM2 Distribution Tight Buffer 96 Fibers OFCR Aluminum Interlocked Armor Sub-Units(12F) Orange Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FI2D096FK is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FI2D096FK | Orange | Reel | 612825368540 | Order online |
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
Fiber Specifications
| Fiber Type | OM2 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 96 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 8 |
|---|---|
| Fibers Per Subunit | 12 |
| Subunit Diameter | 0.230 in (5.8 mm) |
| Subunit Color | Orange |
| Fiber SubUnit Strength Members | Aramid yarns |
| Central Strength Member Type | Upjacketed GRP |
| Core Wrap Material | Mylar |
Inner Jacket Specifications
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter@InnerJacket1 (cnv) | 0.953 in (24.2 mm) |
| Color | Orange |
| Number of Inner Jacket Ripcords | 1 |
Armor Specifications
| Armor Type and Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 1.365 in (34.7 mm) |
| Outer Jacket Color | Orange |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.5 dB/km | 1.25 dB/km |
| 1 Gigabit Ethernet Performance | 600 m | 600 m |
| 10 Gigabit Ethernet Performance | 82 m | -- |
| Min. Restricted Mode Launch | 950 MHz.km | 500 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth | 700 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 1320 N (300 lbf) |
| Max. Tensile Strength During Operation | 400 N (90 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 601 lbs/kft (895 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65, Product LensTM |
| Flammability / Reaction to Fire | OFCR, FT4 |
| ICEA Compliance | S-83-596 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
| Update and Revision | Revision Number: 0.88 Revision Date: 02-20-2026 |
|---|
