Indoor/Outdoor Distribution Tight Buffer OS2 36 Fibers OFNP Sub-Units (12F)

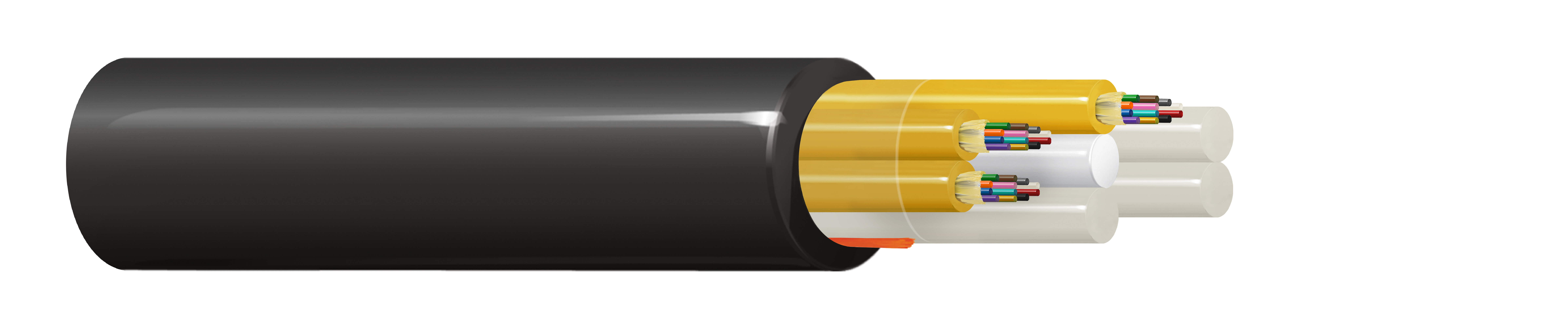

FX Indoor/Outdoor, Distribution Tight Buffer, OS2, 36 Fibers, OFNP, Sub-Units (12F) Black Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FDSD036PK is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| FDSD036PK | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 36 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 3 |
|---|---|
| Number of Fillers | 1 |
| Fibers Per Subunit | 12 |
| Subunit Diameter | 0.220 in (5.6 mm) |
| Subunit Color | Yellow |
| Fiber SubUnit Strength Members | Aramid Yarns |
| Central Strength Member Type | GRP |
| Core Wrap Material | Tape |
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.567 in (14.4 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670N (600lbf) |
| Max. Tensile Strength During Operation | 800N (180lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 89 lbs/kft (132 kg/km) |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 |
| NEC / UL Compliance | OFNP |
| CEC / C(UL) Compliance | FT6. |
| ICEA Compliance | S-104-696 |
| TIA/EIA Compliance | 568.3, 598-D |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.22 Revision Date: 01-20-2026 |
|---|
