Indoor/Outdoor Plenum OM2 Distribution 2 Fibers

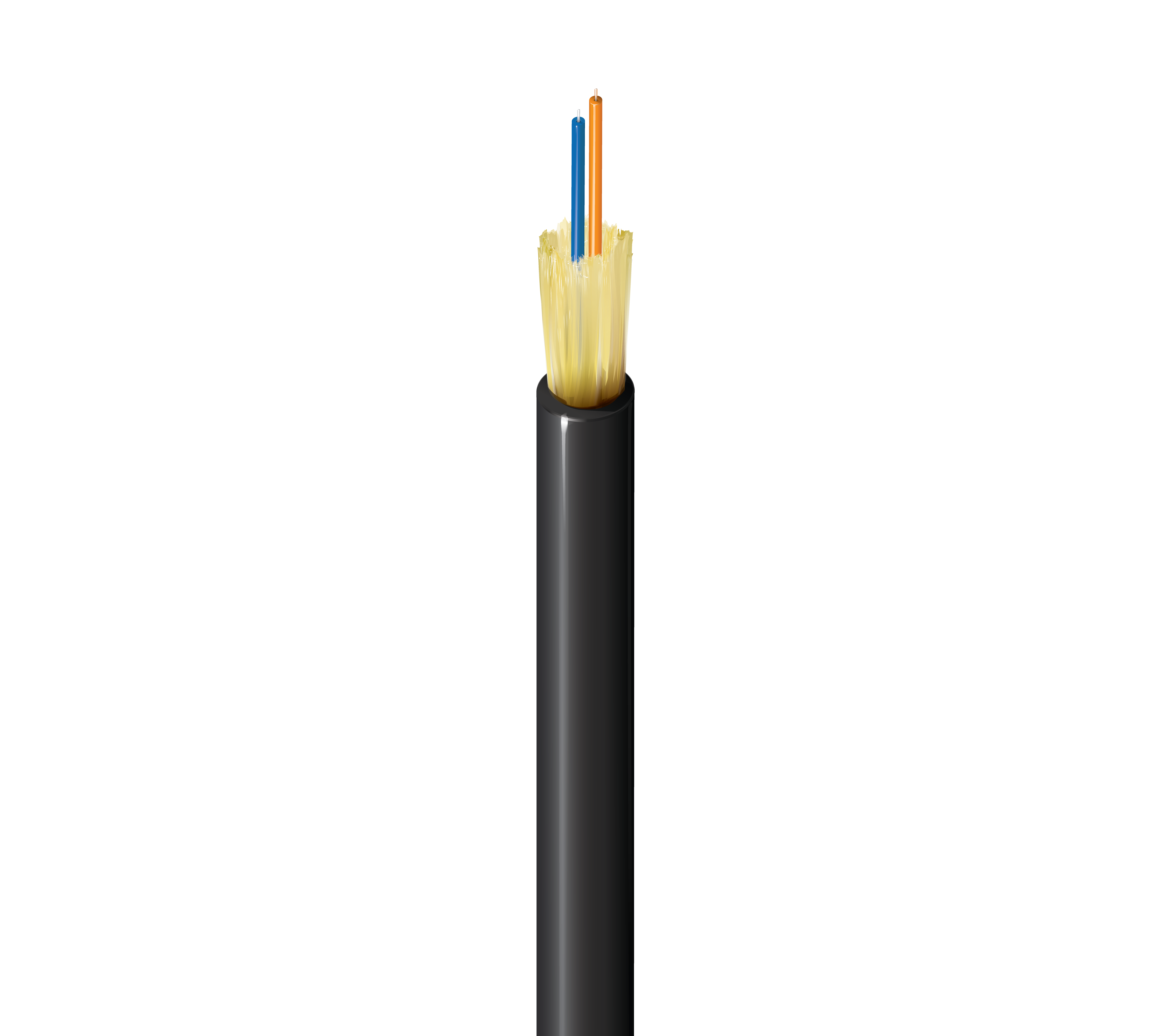

FX Indoor/Outdoor OM2 Distribution Tight Buffer 2 Fibers OFNP Non-Unitized Black Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FD2D002P9 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| FD2D002P9 | Black | Reel | 612825367390 | Order online |
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
Fiber Specifications
| Fiber Type | OM2 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 2 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Cable Core Water Blocking | Waterblocking Aramid Yarns |
|---|
Outer Jacket Specifications
| Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.174 in (4.4 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.5 dB/km | 1.25 dB/km |
| 1 Gigabit Ethernet Performance | 600 m | 600 m |
| 10 Gigabit Ethernet Performance | 82 m | -- |
| Min. Restricted Mode Launch | 950 MHz.km | 500 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth | 700 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 660 N (150 lbf) |
| Max. Tensile Strength During Operation | 200 N (45 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 14 lbs/kft (21 kg/km) |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65, Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | OFNP, FT6 |
| ICEA Compliance | S-104-696 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
| Update and Revision | Revision Number: 0.77 Revision Date: 09-07-2025 |
|---|
