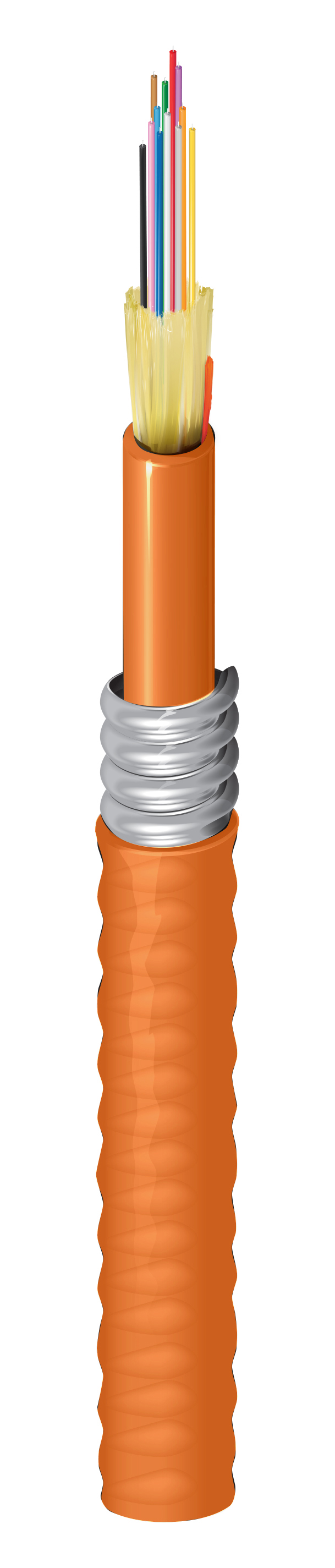

Indoor/Outdoor Distribution Tight Buffer OM1 12 Fibers Aluminum Interlocked Armor Non-Unitized
FX Indoor/Outdoor, Distribution Tight Buffer, OM1, 12 Fibers, LSZH, Aluminum Interlocked Armor, Non-Unitized, Orange Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Product Category | Fiber Distribution Cable |
|---|---|
| Suitable Applications | Premise Backbone |
Fiber Specifications
| Fiber Type | OM1 |
|---|---|
| Fiber Core Diameter | 62.5/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 12 |
| Fiber Color Coding | TIA-598-D |
Inner Jacket Specifications
| Inner Jacket Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nominal Diameter@InnerJacket1 (cnv) | 0.260 in (6.6 mm) |
| Color | Orange |
| Number of Inner Jacket Ripcords | 1 |
Armor Specifications
| Armor Type and Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket Specifications
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 0.550 in (14.1 mm) |
| Outer Jacket Color | Orange |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.5 dB/km | 1.25 dB/km |
| 10 Gigabit Ethernet Performance | 33 m | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 660 N (150 lbf) |
| Max. Tensile Strength During Operation | 200 N (45 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 121 lbs/kft (180 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65, Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL 1666, UL 1685, FT4 |
| NEC / UL Compliance | OFNR-ST1 |
| CEC / C(UL) Compliance | OFNR-ST1. |
| ICEA Compliance | S-104-696 |
| TIA/EIA Compliance | 598-D |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
| Update and Revision | Revision Number: 0.10 Revision Date: 02-24-2025 |
|---|
