Product Number: TR-SCN-012-NRU

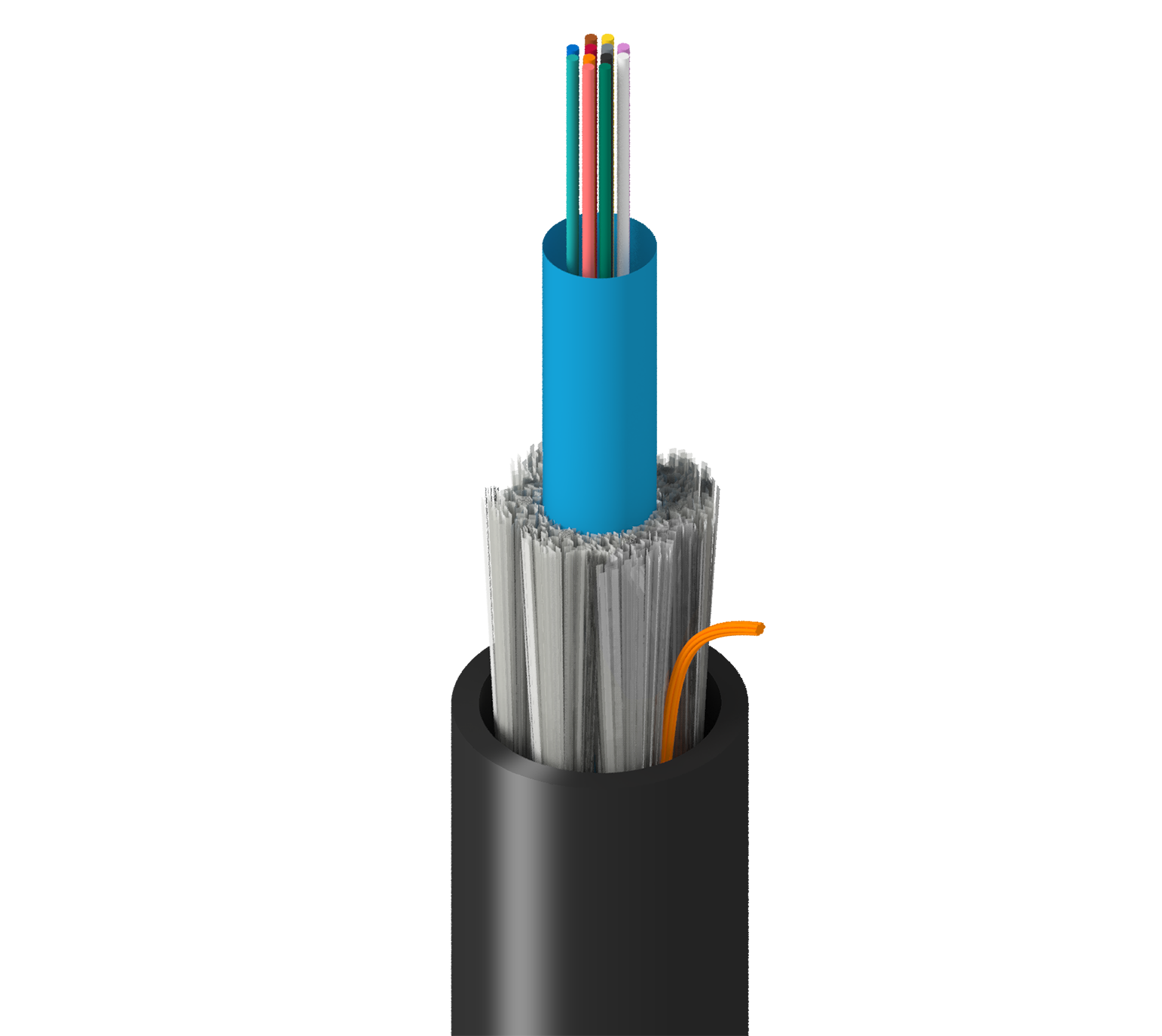

OSP, Outdoor, CLT, OS2, 12f, Dry Tube 2.8mm, RP Sgl Jkt, Blk, UV

Name: Belden TR-SCN-012-NRU
Brand: Belden
SKU: TR-SCN-012-NRU

OSP Grade, Outdoor, Central Loose-Tube, OS2, 12 Fibers, Dry Tube 2.8mm, Rodent Protected, Single Jacket, Black, UV Resistant

Ships from and sold by A5 IT.

Part numbers

TR-SCN-012-NRU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Order
TR-SCN-012-NRUN	Order online

Product Category	Fiber Central Loose Tube Cable
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, OSP, Outdoor & Wet Locations, Rodent Proof, UV Resistant

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.35	0.25
Mode Field Diameter	9.2 μm	10.4 μm
1 Gigabit Ethernet Performance	5000 m
10 Gigabit Ethernet Performance	10000 m	40000 m

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	26 lbs/kft (38 kg/km)

Installation Temperature Range	-30°C to +60°C
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Outdoor, Sunlight Resistance, Burial

Notes	GR - 20

Update and Revision	Revision Number: 0.10 Revision Date: 09-07-2025

BAGU12QA006BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 6F, G652.D, Anti-rodent & UV

BAGU12QA008BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 8F, G652.D, Anti-Rodent & UV

BAGU12QA012BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 12F, G652.D, Anti-Rodent & UV

BAGU12VA024BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 24F, G652.D, Anti-Rodent & UV
