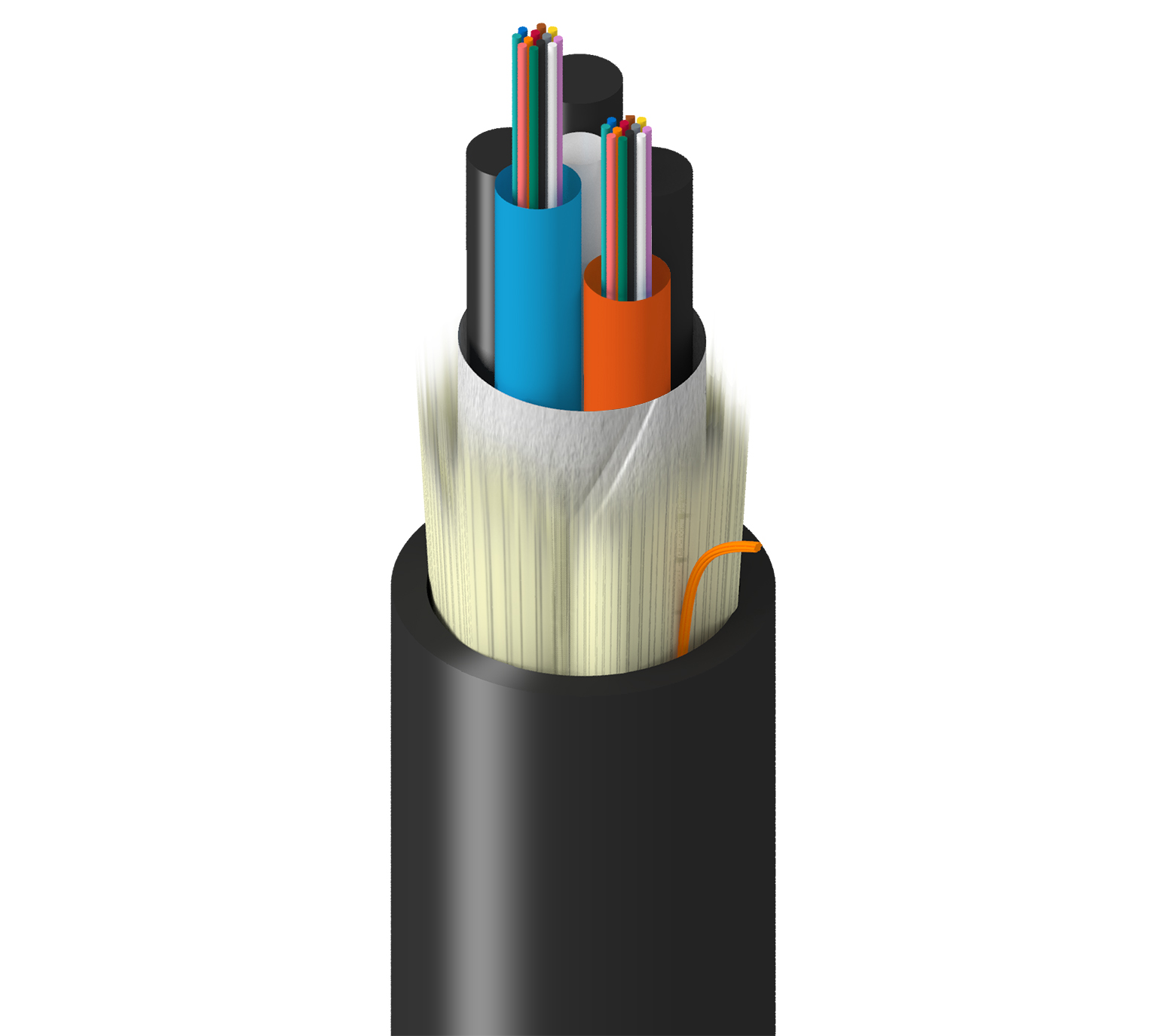

Marine Grade, Indoor/Outdoor, Multi-Loose Tube, OS2, 24 Fibers, Gel Filled Tubes 2.5 mm, Single Jacket, Black, LSZH, OFNG-ST1, ABS Approved
Marine Grade, Indoor/Outdoor, Multi-Loose Tube, OS2, 24 Fibers, Gel Filled Tubes 2.5 mm, Single Jacket, Black, LSZH, OFNG-ST1, ABS Approved
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations |
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Diameter | 250 μm |
| Fiber Count | 24 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 2 |
|---|---|
| Number of Fillers | 3 |
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 0.098 in (2.5 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | GRP |
Outer Jacket Specifications
| Strength Member | Waterblocking Fiberglass Yarns |
|---|---|
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter | 0.437 in (11.1 mm) |
| Outer Jacket Color | Black |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.4 dB/km | 0.3 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 85 lbs/kft (126 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
| NEC / UL Compliance | OFNG-ST1 |
| CEC / C(UL) Compliance | FT4. |
| ICEA Compliance | S-104-696 |
| IEEE Compliance | IEEE 45 |
| Marine Compliance | ABS |
History
| Update and Revision | Revision Number: 0.5 Revision Date: 08-20-2025 |
|---|
