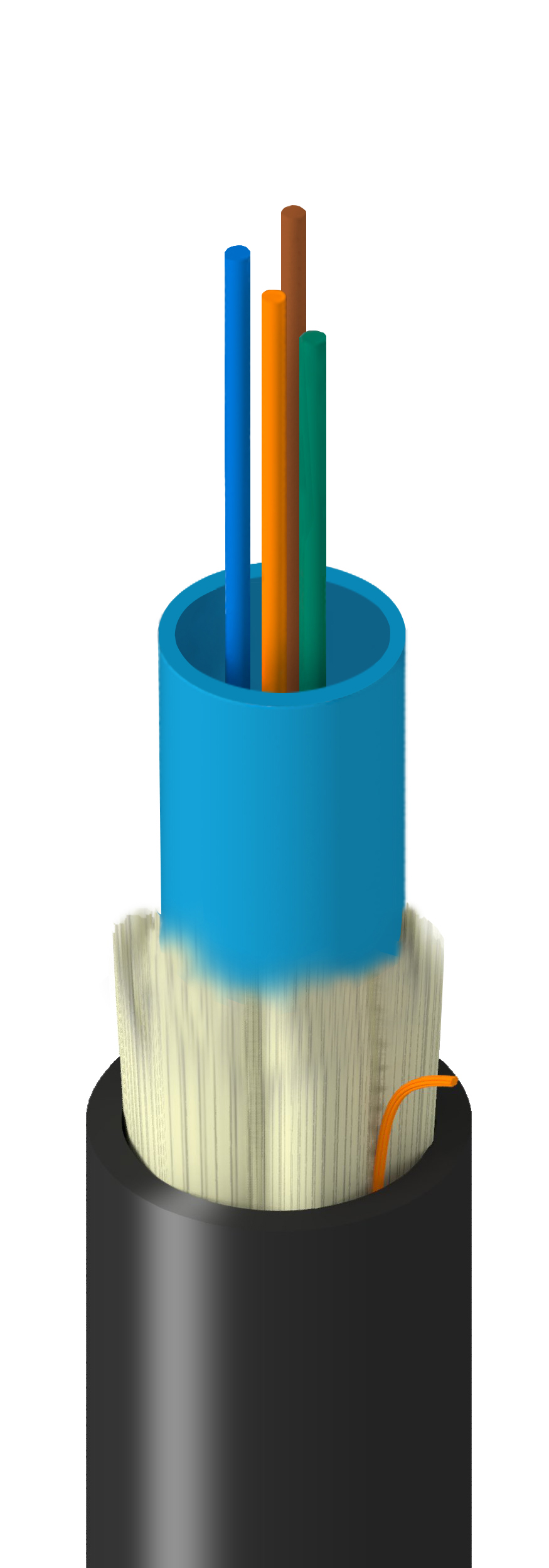

Product Number: TF-1C0-004-RR5N

Factory Grade, Indoor/Outdoor, Central Loose-Tube, OM1, 4 Fibers, Gel Filled Tube 3.8 mm, Rodent Protected, Single Jacket, Black, PVC, OFNR, Ozone-UV Chem Resistant

Ships from and sold by A5 IT.

Specifications

Product Category	Fiber Central Loose Tube Cable
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

Strength Member	Waterblocking Fiberglass Yarns
Jacket Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.315 in (8.0 mm)
Outer Jacket Color	Black
Outer Jacket Ripcord	1

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.4 dB/km	0.3 dB/km
10 Gigabit Ethernet Performance	10,000 m	50,000 m

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1320 N (300 lbf)
Max. Tensile Strength During Operation	400 N (90 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	42 lbs/kft (62 kg/km)

Installation Temperature Range	-10°C to +60°C
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1666, UL 1685
NEC / UL Compliance	OFNR
CEC / C(UL) Compliance	OFNR.
ICEA Compliance	S-104-696
TIA/EIA Compliance	598-D
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment)

Update and Revision	Revision Number: 0.4 Revision Date: 08-20-2025

BAGU12QA006BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 6F, G652.D, Anti-rodent & UV

BAGU12QA008BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 8F, G652.D, Anti-Rodent & UV

BAGU12QA012BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 12F, G652.D, Anti-Rodent & UV

BAGU12VA024BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 24F, G652.D, Anti-Rodent & UV
