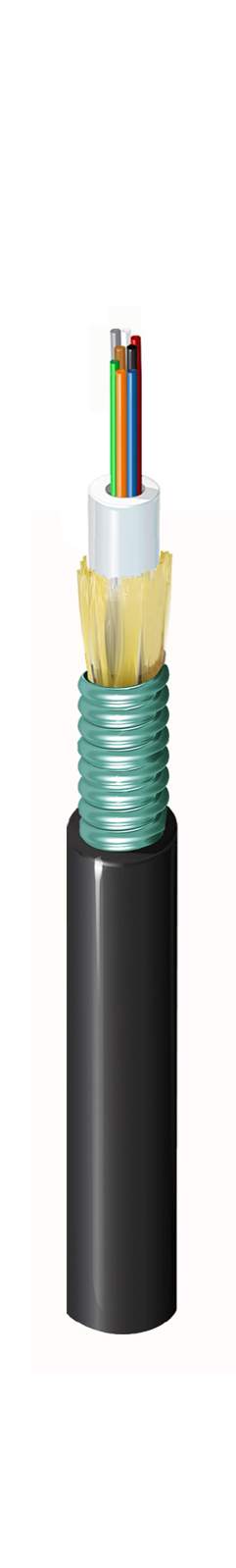

Universal OFC CLT (jelly filled): ARAMID YARNS + CST + LSZH Jacket 8f SM G.652.D. IEC 60332-1 rated.
Universal (Indoor/Outdoor) optical fiber Central Loose Tube (jelly filled tube) cable with aramid yarns as flexible non-metallic strength member, Corrugated Steel Tape armor and flame retardant LSZH jacket, 8 fibers SM G.652.D. IEC 60332-1 rated.
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Product Category | Central Loose Tube |
|---|---|
| Suitable Applications | For Indoor/Outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone, building backbone and/or horizontal cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. |
Fiber Specifications
| Fiber Type | OS2, G.652.D |
|---|---|
| Fiber Core Diameter | 9 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 8 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Fibers Per Subunit | 8 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 3.0 mm |
| Subunit Color | Natural |
Armor Specifications
| Armor Type and Material | CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. Diameter | 7.3 mm (0.29 in) |
| Outer Jacket Color | Black |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.36 dB/km | 0.22 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20 x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10 x Cable OD |
| Max. Tensile Strength During Installation | 1000 N (220 lbf) |
| Max. Tensile Strength During Operation | 400 N (90 lbf) |
| Crush Resistance | 1000 N/100 mm for short term |
| Bulk Cable Weight | 68 kg/km (46 lbs/1000ft) |
Mechanical Tests
| Description | Tested Standard |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | IEC 60794-1-21-E11 |
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 |
| Cable Max. Crush Resistance Installation (Short Term) | IEC 60794-1-21-E3 |
| Cable Max. Crush Resistance Operation (Long Term) | IEC 60794-1-21-E3 |
Temperature Range
| Operating Temperature Range | -40°C to +70°C |
|---|---|
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1 Flammability |
| ISO/IEC Compliance | IEC 60793-1-1 IEC 60794-1-1 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = ≤ 5 mg/g, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 , IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
History
| Update and Revision | Revision Number: 0.34 Revision Date: 03-25-2026 |
|---|
