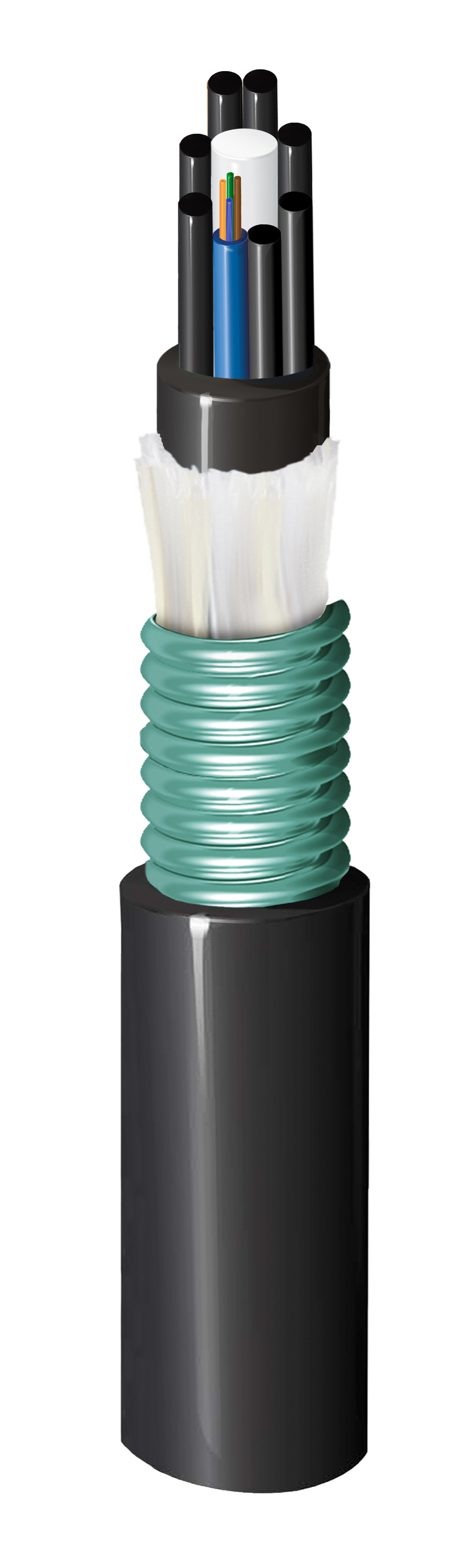

Universal OFC MLT: Gel Filled Tubes (4F/T), Gel Filled Core, PE Inner Jacket (black) + CST + LSZH Outer Jacket (black) 4f MM OM4 IEC 60332-1 rated.
Universal (Indoor/Outdoor) Gel filled tubes (4F/T), Gel filled core, optical fiber Multi Loose Tube cable with Polyethylene inner jacket (black), Corrugated Steel Tape armor and Low Smoke Zero Halogen outer jacket (black), 4 fibers MM OM4 IEC 60332-1 rated.
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | For outdoor/indoor use in structured (data) wiring systems such as industrial backbone, campus backbone, building backbone cabling. For outdoor/indoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial. |
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50 μm |
| Fiber Diameter | 125 μm |
| Fiber Buffer Material | PBT – Polybutylene Terephthalate |
| Fiber Count | 4 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 1 |
|---|---|
| Number of Fillers | 7 |
| Fibers Per Subunit | 4 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 2.1 mm |
| Subunit Color | Blue, Filler, Filler, Filler, Filler, Filler, Filler, Filler |
| Central Strength Member Type | GRP |
| Cable Core Water Blocking | Gel Filled |
Inner Jacket Specifications
| Material | PE - Polyethylene |
|---|---|
| Color | Black |
Armor Specifications
| Armor Type and Material | CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 15.8 mm (0.622 in) |
| Outer Jacket Color | Black |
Optical Characteristics
| Wavelength | Max. Attenuation |
|---|---|
| 850 nm | 3.0 dB/km |
| 1300 nm | 1.0 dB/km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 25 x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 12.5 x Cable OD |
| Max. Tensile Strength During Installation | 3000 N (670 lbf) |
| Max. Tensile Strength During Operation | 1000 N (220 lbf) |
| Crush Resistance | 3000N/100mm |
| Bulk Cable Weight | 330 kg/km (220 lbs/1000ft) |
Mechanical Tests
| Description | Tested Standard |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | IEC 60794-1-21-E11 |
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 |
| Cable Max. Crush Resistance Installation (Short Term) | IEC 60794-1-21-E3 |
| Cable Max. Crush Resistance Operation (Long Term) | IEC 60794-1-21-E3 |
Temperature Range
| Operating Temperature Range | -40 °C to +70 °C |
|---|---|
| Storage Temperature Range | -40 °C to +70 °C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Aerial, Burial |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| ISO/IEC Compliance | IEC 60793-1-1 IEC 60794-1-1 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
History
| Update and Revision | Revision Number: 0.38 Revision Date: 01-16-2024 |
|---|
