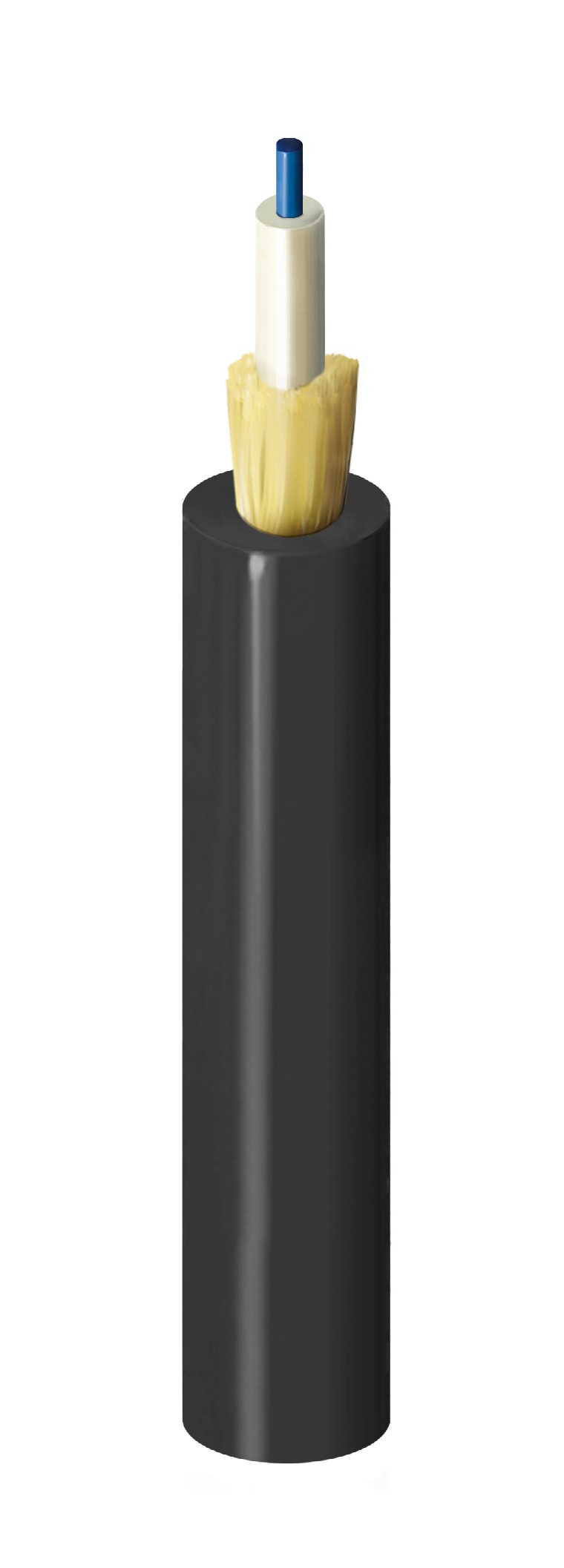

FX Indoor/Outdoor, OS2 G.657.B3, Drop, 1 Fiber, OFNR, Black Jacket, Reel-in-box - 450m
FX Indoor/Outdoor, OS2 G.657.B3, Drop, 1 Fiber, OFNR, Black Jacket, Reel-in-box - 450m
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Product Category | Fiber Drop Cable |
|---|---|
| Suitable Applications | Provides easy routing and 900 μm tight-buffered fiber supports fast and robust field terminations. Ideal for fiber-to-the-subscriber applications |
Fiber Specifications
| Fiber Type | OS2, G.657.B3, G.652.D |
|---|---|
| Fiber Core Diameter | 250 μm |
| Fiber Diameter | 900 μm |
| Fiber Count | 1 |
| Fiber Color Coding | TIA-598-D |
Outer Jacket Specifications
| Strength Member | Aramid Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.188 in (4.8 mm) |
| Outer Jacket Color | Black |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.5 dB/km | 0.5 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5000 m | -- |
| 10 Gigabit Ethernet Performance | 10000 m | 50000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15X Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 800 N (180 lbf) |
| Max. Tensile Strength During Operation | 240 N (54 lbf) |
| Crush Resistance | 100 N/cm |
| Bulk Cable Weight | 13.2 lbs/kft (19.6 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | UL 1666, UL 1685, FT4 |
| NEC / UL Compliance | OFNR |
| CEC / C(UL) Compliance | OFNR. |
| TIA/EIA Compliance | 598-D |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment) |
History
| Update and Revision | Revision Number: 0.28 Revision Date: 07-10-2025 |
|---|
