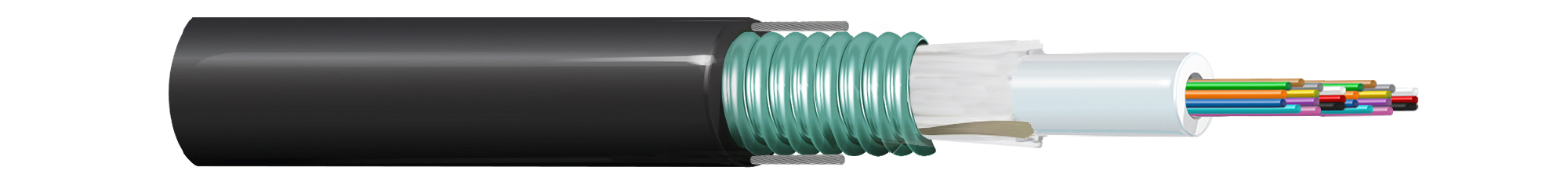

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 24F, 50μm OM4(BI)
Outdoor optical fiber Central Loose Tube (jelly filled) cable with glass yarns as flexible non-metallic strength member, Corrugated steel tape armor and Single Polyethylene Jacket (black) with two steel wires embeded, 24 Fibers, 50μm OM4(BI).
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial. |
|---|
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50.0 ± 2.5 μm |
Armor Specifications
| Armor Type and Material | CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
| Jacket Material | PE - Polyethylene |
|---|---|
| Outer Jacket Color | Black |
| Optical Characteristics Table Notes | Effective Modal Bandwidth: 4700 MHz.km, Numerical Aperture: 0.200 ± 0.015 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20 x OD |
|---|---|
| Max. Tensile Strength During Installation | 2000 N (450 lbf) |
| Max. Tensile Strength During Operation | 600 N (130 lbf) |
| Crush Resistance | <300 N/cm |
| Bulk Cable Weight | 90 kg/km (60 lbs/1000ft) |
Temperature Range
| Operating Temperature Range | - 40°C To + 70°C |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor Aerial Direct Burial |
|---|---|
| ISO/IEC Compliance | IEC 60793, IEC 60794-1 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
History
| Update and Revision | Revision Number: 0.12 Revision Date: 02-28-2025 |
|---|
